Bifurcations and synchrony in a network of delayed Wilson-Cowan nodes

Jonathan J Crofts

Nottingham Trent University

4th June 2024

Outline


  • Introduction and Motivation

  • A Brain Network Model

  • Bifurcation Structure of the Synchronisation Manifold

  • The Effect of Network Structure and Time Delay on Patterns of Synchrony

  • Concluding Remarks and Future Work
    •

Connectivity: why do we care?

Clinical measurements

  • White + grey matter connectivity is thought to form the substrate for many different neurological and pyschiatric disorders

  • Modern MRI techniques allow in-vivo measurements specific to different connections

Example   Axonal degeneration/demyelination in Multiple Sclerosis (Evangelou et al. 2000)


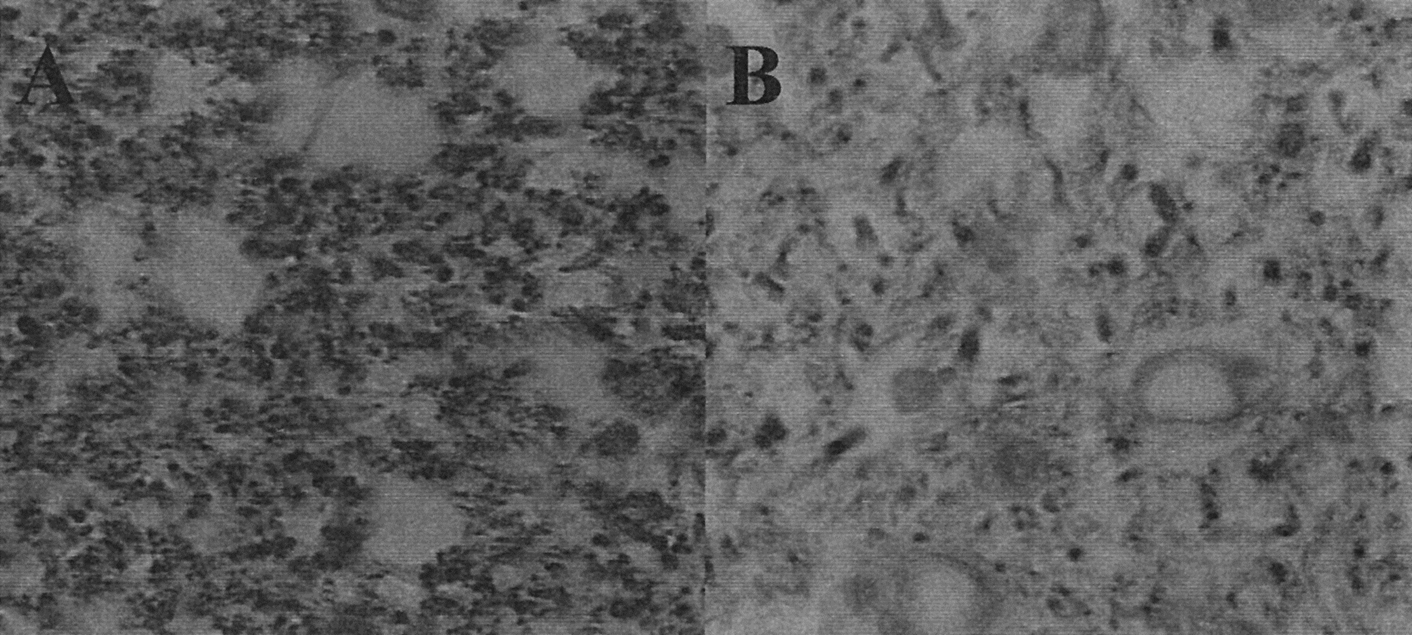

Left: control              Right: MS

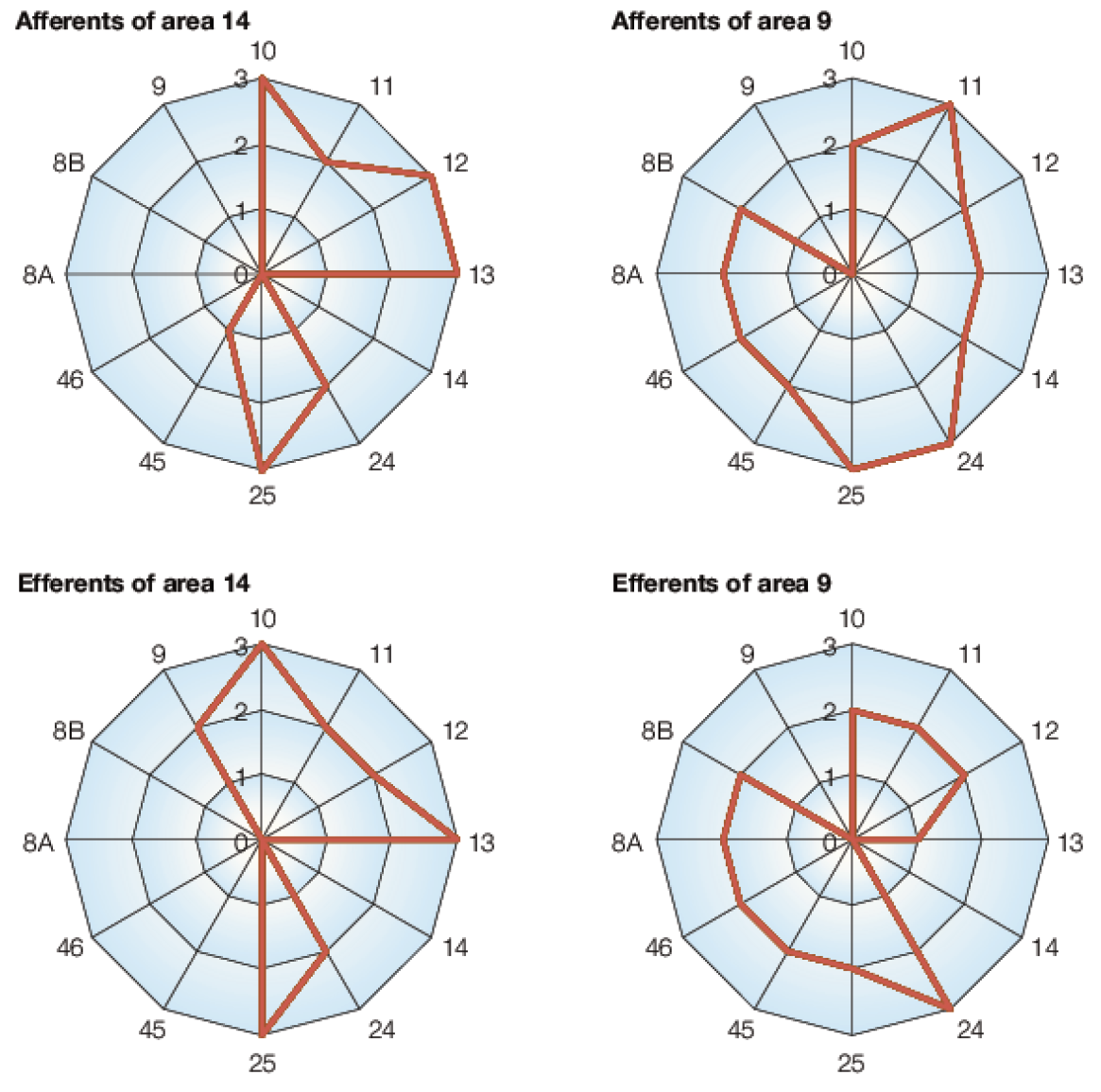

Connections constrain function


Passingham et al., 2002

  • Operations performed by an area are determined by its connectivity

  • Different regions have distinct connectivity fingerprints

  • Understanding regional connectivity is essential to understanding systems neuroscience

Investigating Brain Connectivity


Diffusion-weighted MR imaging obtains similar pictures in vivo

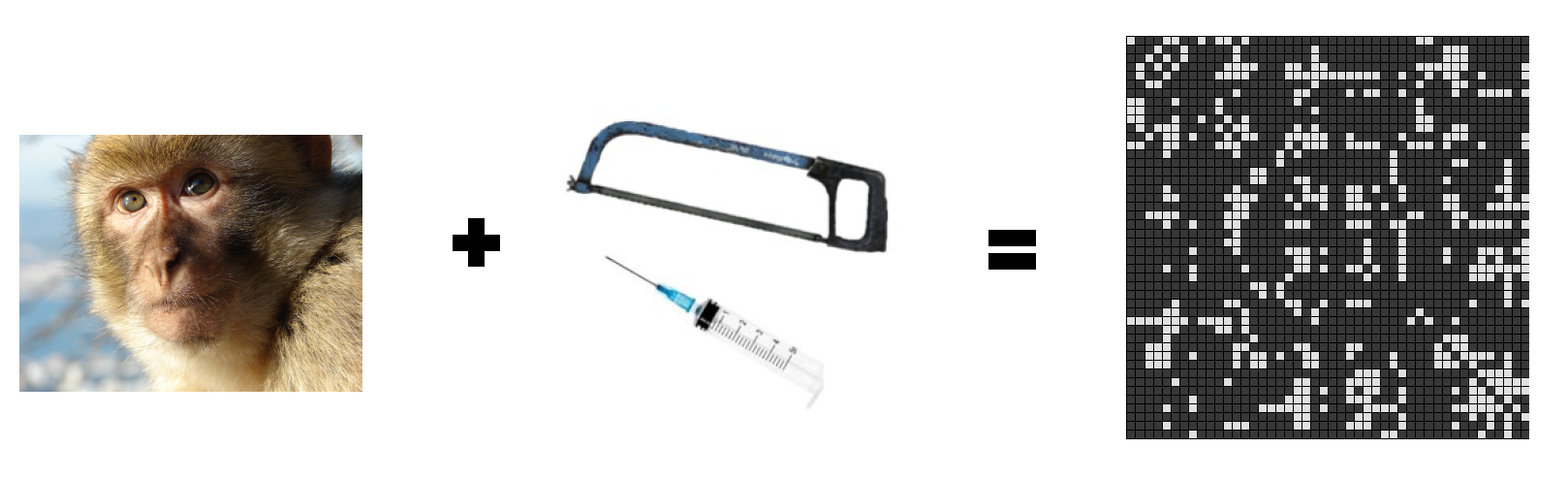

Sacraficial tracer studies carried out on primates represent the gold standard


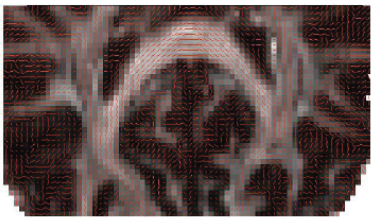

Tractography algorithms construct a vector field describing the connectivity structure

Outline


  • Introduction and Motivation

  • A Brain Network Model

  • Bifurcation Structure of the Synchronisation Manifold

  • The Effect of Network Structure and Time Delay on Patterns of Synchrony

  • Concluding Remarks and Future Work
    •

Networks in Neuroscience


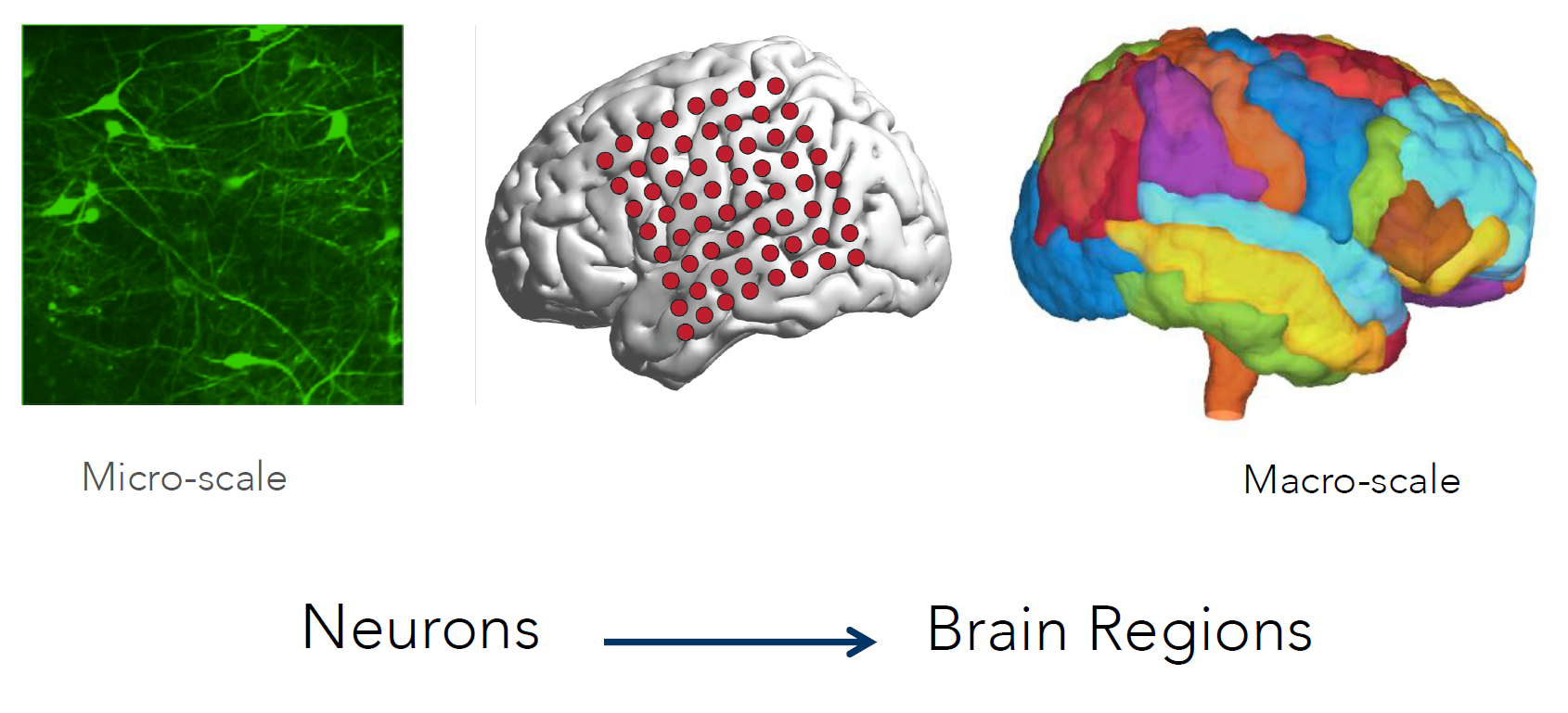

Choices of scales determine how brain network models are built

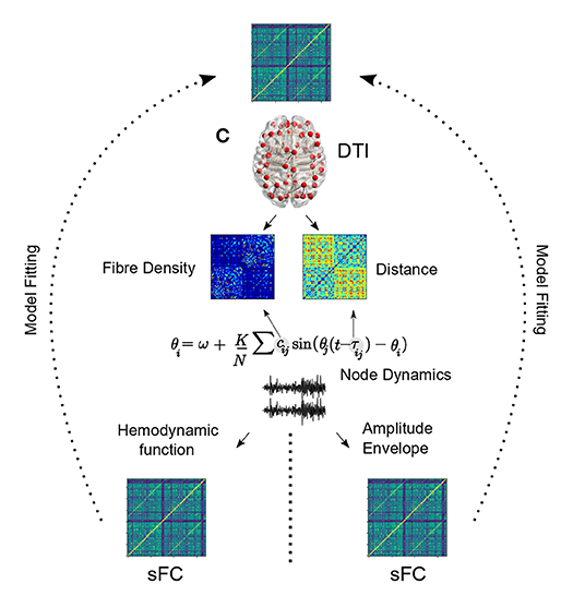

Brain Network Models

We consider here large-scale brain network models

  • DTI (or tracer) connectivity provides information about interregional connectivity

  • Euclidean distances or fibre tract length may be scaled to obtain temporal delay information

  • Kuramoto model is used here to demonstrate how DTI information is incorporated into the model

  • Further processing depending on whether we are modelling BOLD or EEG/MEG signals

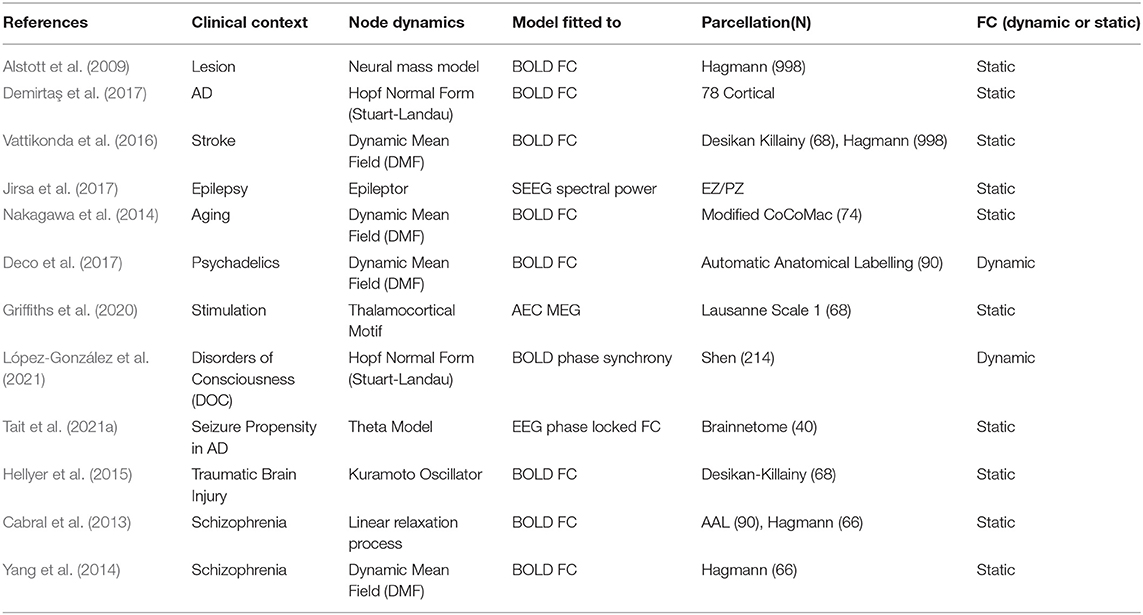

Exemplar BNM studies


Pathak et al. Front. Comp. Neuro., 2022

A Model of Brain Network Activity

  • To model synchrony behaviour in coupled masses, we consider a network of Wilson-Cowan nodes of the form

\[\begin{align*} \frac{\mathrm{d}u_i}{\mathrm{d}t} &= -u_i + \phi\left(au_i(t-\tau)+bv_i(t-\tau)+P+\epsilon\sum_{j}w_{ij}u_j(t-\rho)\right) \\ \frac{\mathrm{d}v_i}{\mathrm{d}t} &= -v_i + \phi\left(cu_i(t-\tau)+dv_i(t-\tau)+Q\right), ~i=1,\ldots,n \end{align*}\]

  • Here, $\epsilon$ denotes the coupling strength

  • And \[ \color{gray}{\boxed{\color{black}{ W = D^{-1}A\in\mathbb{R}^{n\times n} \quad \text{with} \quad D = \mathrm{diag}\left(k_1, k_2, \ldots k_n\right)}}} \] is the scaled adjacency matrix

  • Recall that $a_{ij}=1$ if nodes $i$ and $j$ are connected but is otherwise zero

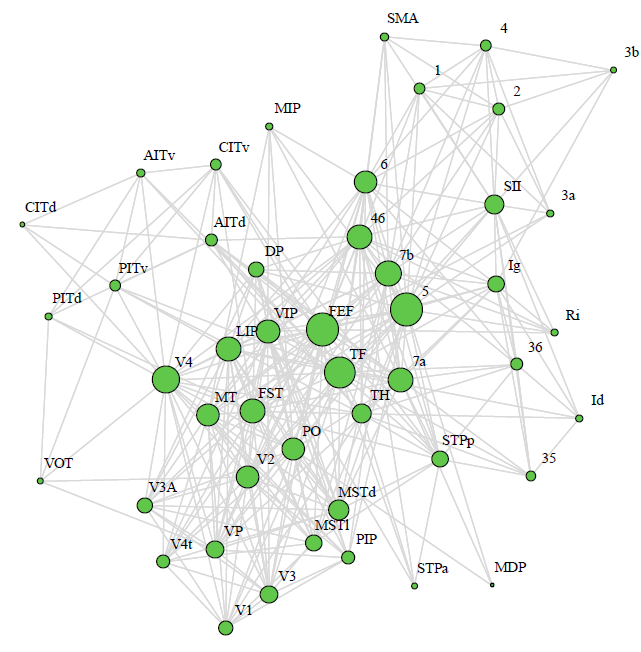

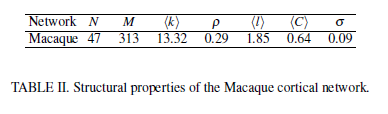

In our brain network model we choose the cortical structure of the Macaque monkey



  • $n=47$ brain regions (nodes) which are linked by $m=313$ undirected fibres (edges)

  • Binary connectivity matrix, i.e. $a_{ij} = a_{ji} = 1$ if brain region $i$ connects to brain region $j$

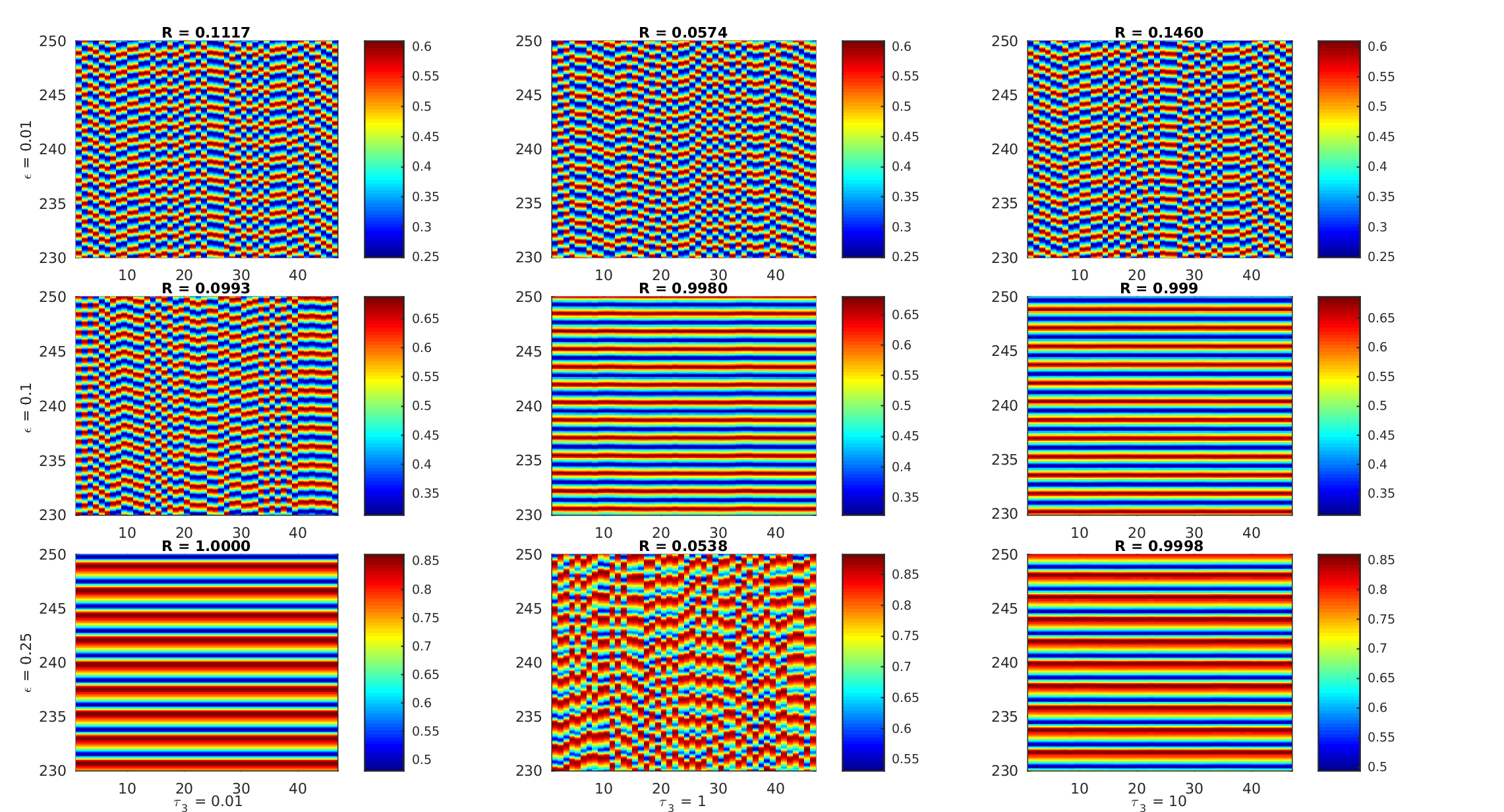

Simulations for varying $\epsilon$ and $\rho$

centered image

\[ R = \frac{\langle \bar{u}(t)^2\rangle - \langle \bar{u}(t)\rangle^2}{\frac{1}{n}\sum_{i=1}^n\left(\langle u_i(t)^2\rangle-\langle u_i(t)\rangle^2\right)} \]

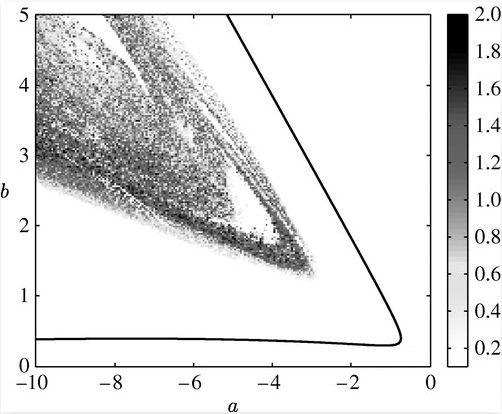

A single Wilson-Cowan node with delay

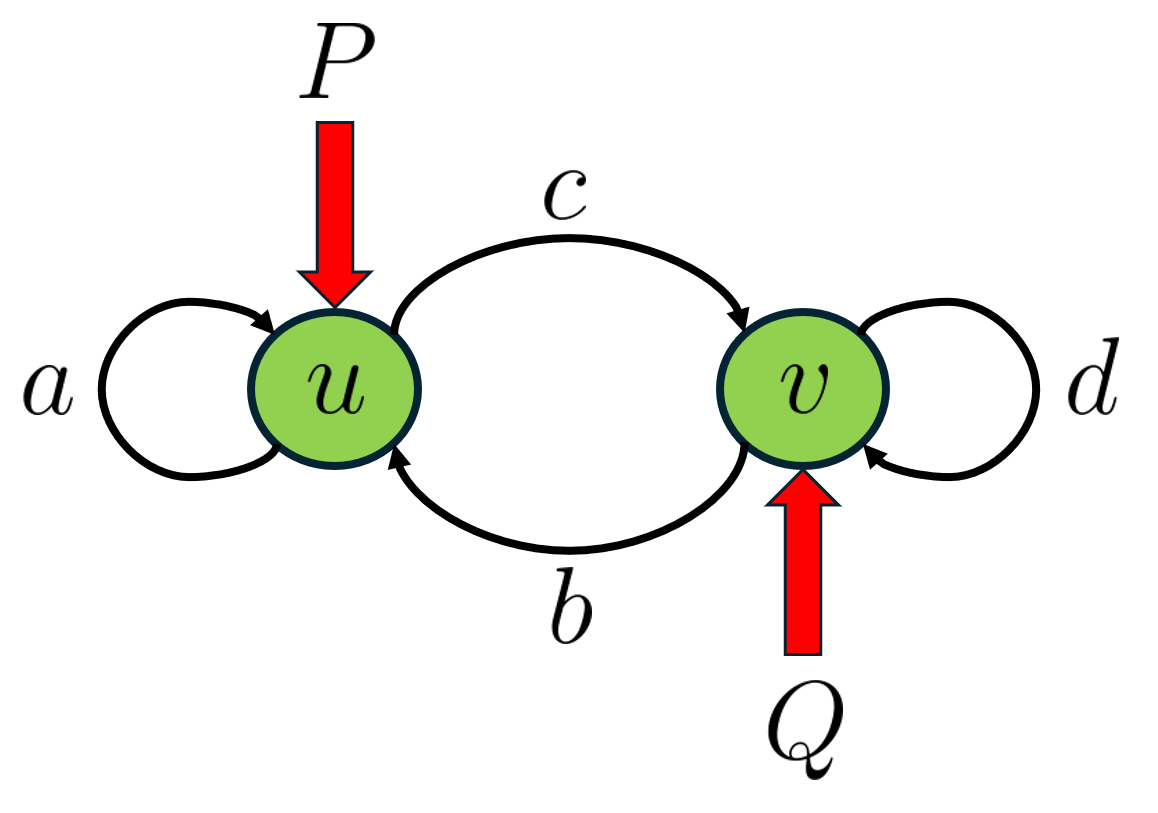

  • We consider Wilson-Cowan masses of the form

\[\begin{align*} \frac{\mathrm{d}u}{\mathrm{d}t} &= -u + \phi\left(au(t-\tau_1)+bv(t-\tau_2)+P\right) \\ \frac{1}{\alpha}\frac{\mathrm{d}v}{\mathrm{d}t} &= -v + \phi\left(cu(t-\tau_2)+dv(t-\tau_1)+Q\right) \end{align*}\]

S Coombes and C Laing. Phil. Trans. R. SOC. A, 2009

  • Parameters:
    • $a, b, c$ and $d$ describe interactions between subpopulations
    • $P, Q$ are basal inputs
    • $\alpha$ sets the relative time scales
    • $\tau_{1,2}$ represent intra-node transmission delays

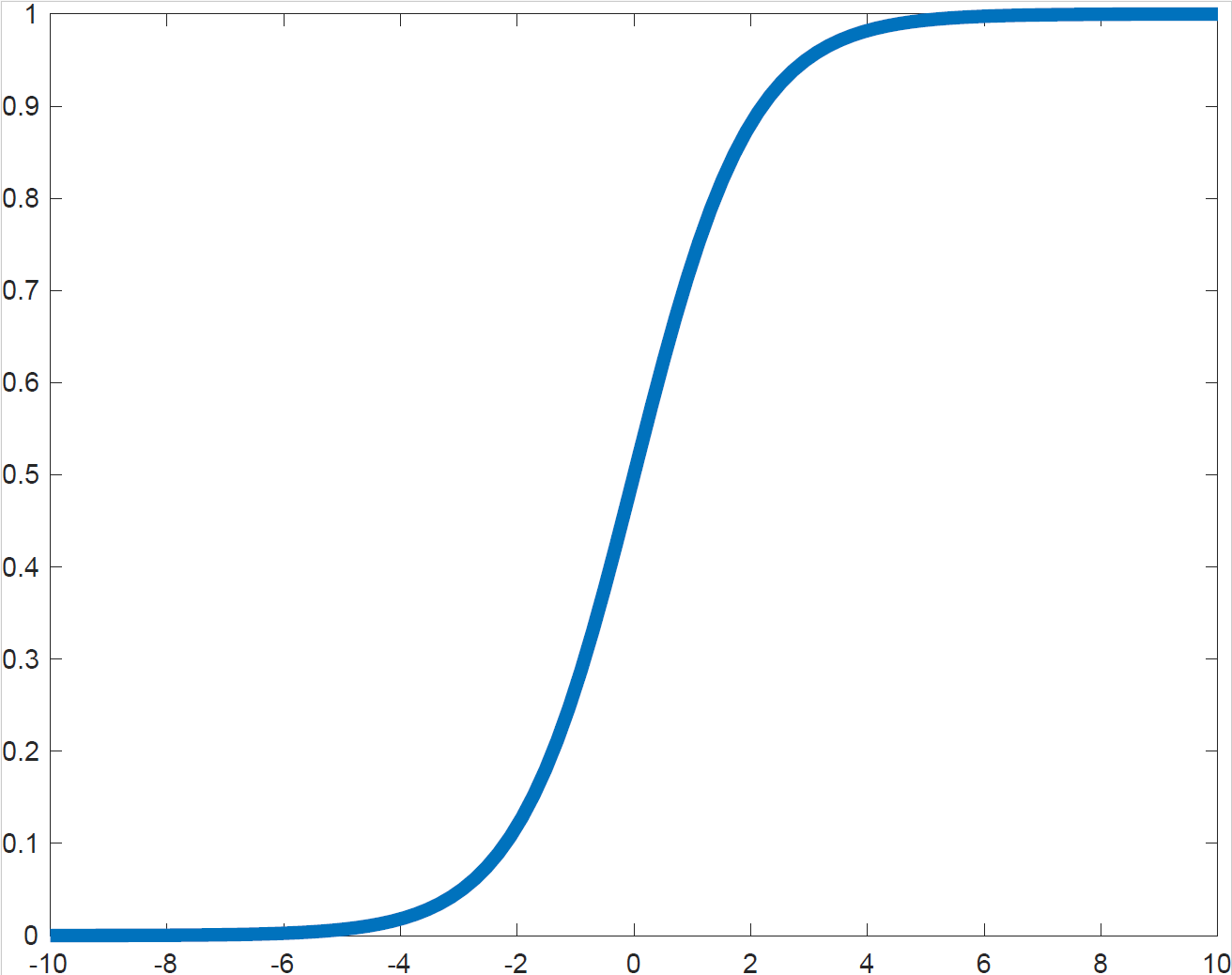

  • Firing rate function:

\[\phi(z) = \frac{1}{1+e^{-\beta z}} \]

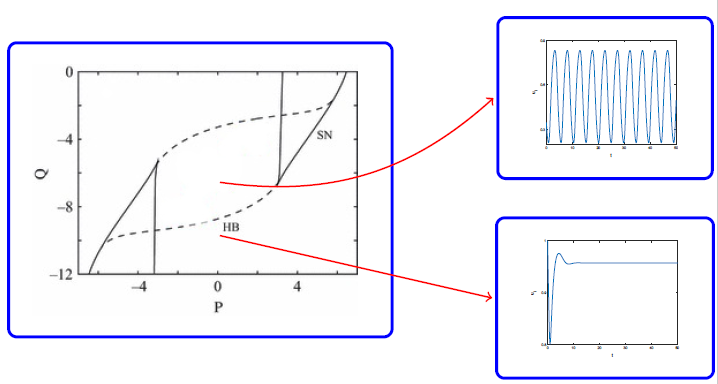

  • $\tau_1=\tau_2=0$
  • $\tau_1=\tau_2=\tau\neq0$

chaotic behaviour

  • Coupling parameters: $a = d$ and $b = c$

  • Other parameters: $$\alpha=1, \beta=60 \text{ and } \tau=0.1$$
  • Basal inputs $P = Q = 0.2$

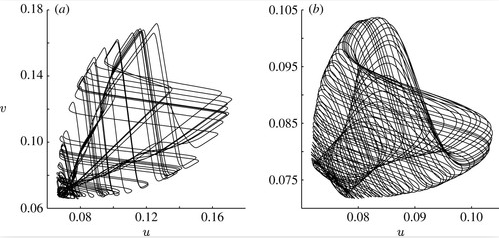

  • $\tau_1=\tau_2=\tau\neq0$

chaotic and quasiperiodic solutions

Outline


  • A Brain Network Model

  • Bifurcation Structure of the Synchronisation Manifold

  • The Effect of Network Structure and Time Delay on Patterns of Synchrony

  • Concluding Remarks and Future Work

Dynamics on the Synchronisation Manifold

For row normlised connectivity matrices, the coupled system of WC masses admits synchronous solutions of the form \[(u_i(t), v_i(t)) = (u_s(t),v_s(t))\quad i=1,\ldots,n\] such that the functions $(u_s, v_s)$ satisfy

\[\begin{align*} \frac{\mathrm{d}u_s}{\mathrm{d}t}&= -u_s(t)+\phi\left(au_s(t-\tau)+bv_s(t-\tau)+\epsilon u_s(t-\rho)+P\right)\\ \frac{\mathrm{d}v_s}{\mathrm{d}t}&=-v_s(t)+\phi\left(cu_s(t-\tau)+dv_s(t-\tau)+Q\right)\\ \end{align*}\]

This decoupling happens since \[ \epsilon\sum_{j=1}^n w_{ij}u_j(t-\rho) = \epsilon u_s(t-\rho)\sum_{j=1}^nw_{ij} = \epsilon u_s(t-\rho) \]

Linear Stability Analysis

Linearisation about the fixed point $(u^*,v^*)$ takes the form

\[ \frac{\mathrm{d}}{\mathrm{d}t}\begin{pmatrix}u\\v\end{pmatrix} = A\begin{pmatrix}u\\v\end{pmatrix}+B\begin{pmatrix}u(t-\tau)\\v(t-\tau)\end{pmatrix}+C\begin{pmatrix} u(t-\rho)\\v(t-\rho)\end{pmatrix} \]

with

\[ A = \begin{pmatrix}-1&0&\\0&-1\end{pmatrix}, \quad B = \begin{pmatrix}a\beta u^*(1-u^*)&b\beta u^*(1-u^*)&\\c\beta v^*(1-v^*)&d\beta v^*(1-v^*)\end{pmatrix} \]

and

\[ C =\begin{pmatrix}\epsilon\beta u^*(1-u^*)&0&\\0&0\end{pmatrix} \]

So that we need to solve

\[ \Delta(\lambda) = \det \begin{pmatrix}\lambda+1-\beta u^*(1-u^*)\left(a\mathrm{e}^{-\lambda\tau}+\epsilon e^{-\lambda\rho}\right)&-b\beta u^*(1-u^*)\mathrm{e}^{-\lambda \tau}\\ -c\beta v^*(1-v^*)\mathrm{e}^{-\lambda\tau}& \lambda +1 - d\beta v^*(1-v^*)\mathrm{e}^{-\lambda\tau}\end{pmatrix} = 0 \]

Hopf Bifurcations and the birth of synchronous oscillations

Substituting $\lambda =i\omega$ in the characteristic equation, $\Delta(\lambda)$, and separating real and imaginary parts gives conditions for a Hopf bifurcation

\[ \begin{align*} 0 &= (1-k_1\cos(\omega\tau)-k_2\cos(\omega\rho))(1-k_3\cos(\omega\tau)) -(\omega+k_1\sin(\omega\tau)\\&+k_2\sin(\omega\rho))(\omega+k_3\sin(\omega\tau))-k_4\cos(2\omega\tau) \end{align*} \]

\[ \begin{align*} 0 &= (1-k_1\cos(\omega\tau)-k_2\cos(\omega\rho))(\omega+k_3\sin(\omega\tau)) +(\omega+k_1\sin(\omega\tau)\\&+k_2\sin(\omega\rho))(1-k_3\cos(\omega\tau))+k_4\sin(2\omega\tau). \end{align*} \]

Here

\[ k_1 = a\beta u^*(1-u^*),\quad k_2 = \epsilon\beta u^*(1-u^*),\quad k_3 = d\beta v^*(1-v^*) \]

and

\[ k_4 = bc\beta^2 u^*(1-u^*)v^*(1-v^*) \]

Simultaneous solution of these equations define a HB

Bifurcations in the Synchronisation Manifold

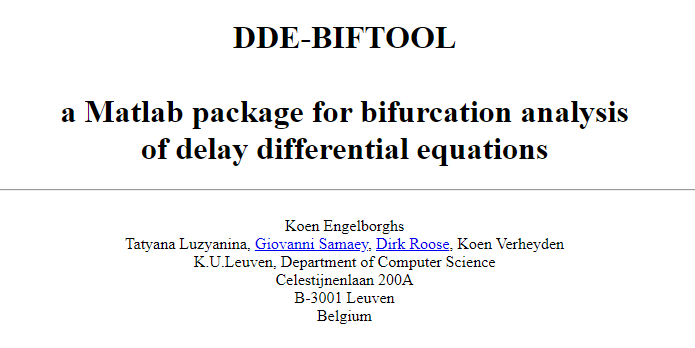

To better understand the influence of model parameters we used DDE-BIFTOOL to perform a numerical bifurcation analysis of the self-coupled system
  • Richer dynamics:

    • oscillations (birth/death)
    • multistability
    • quasiperiodicity
    • chaos ...

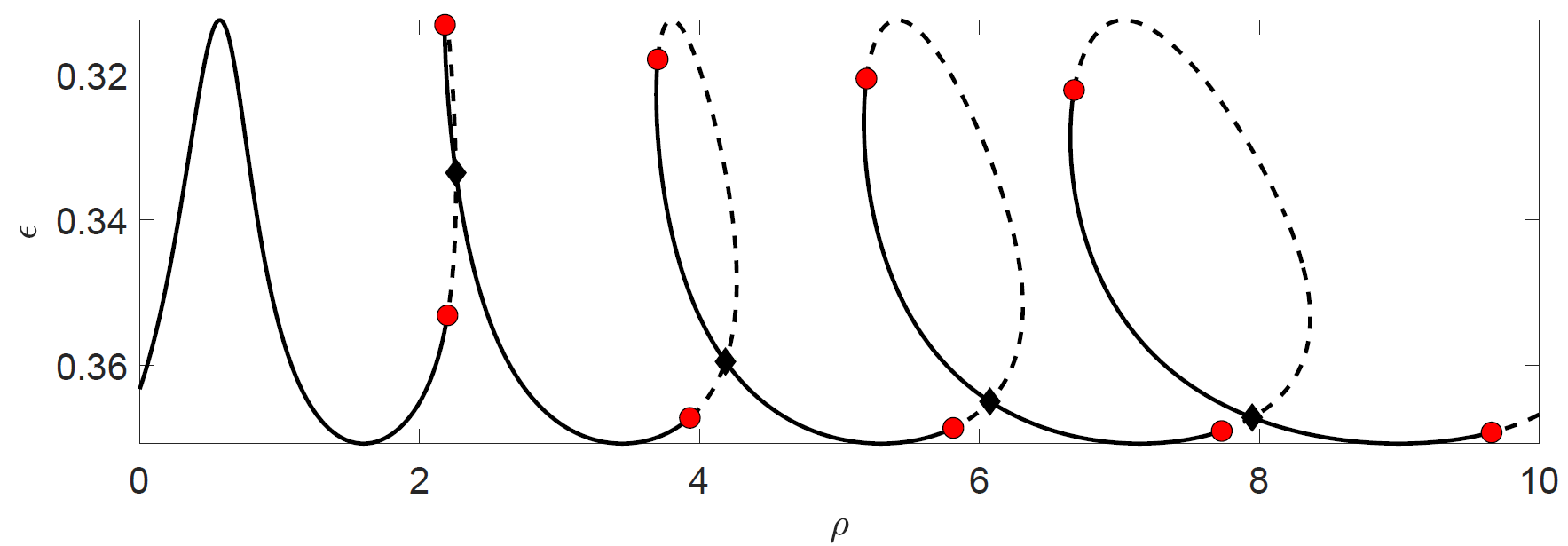

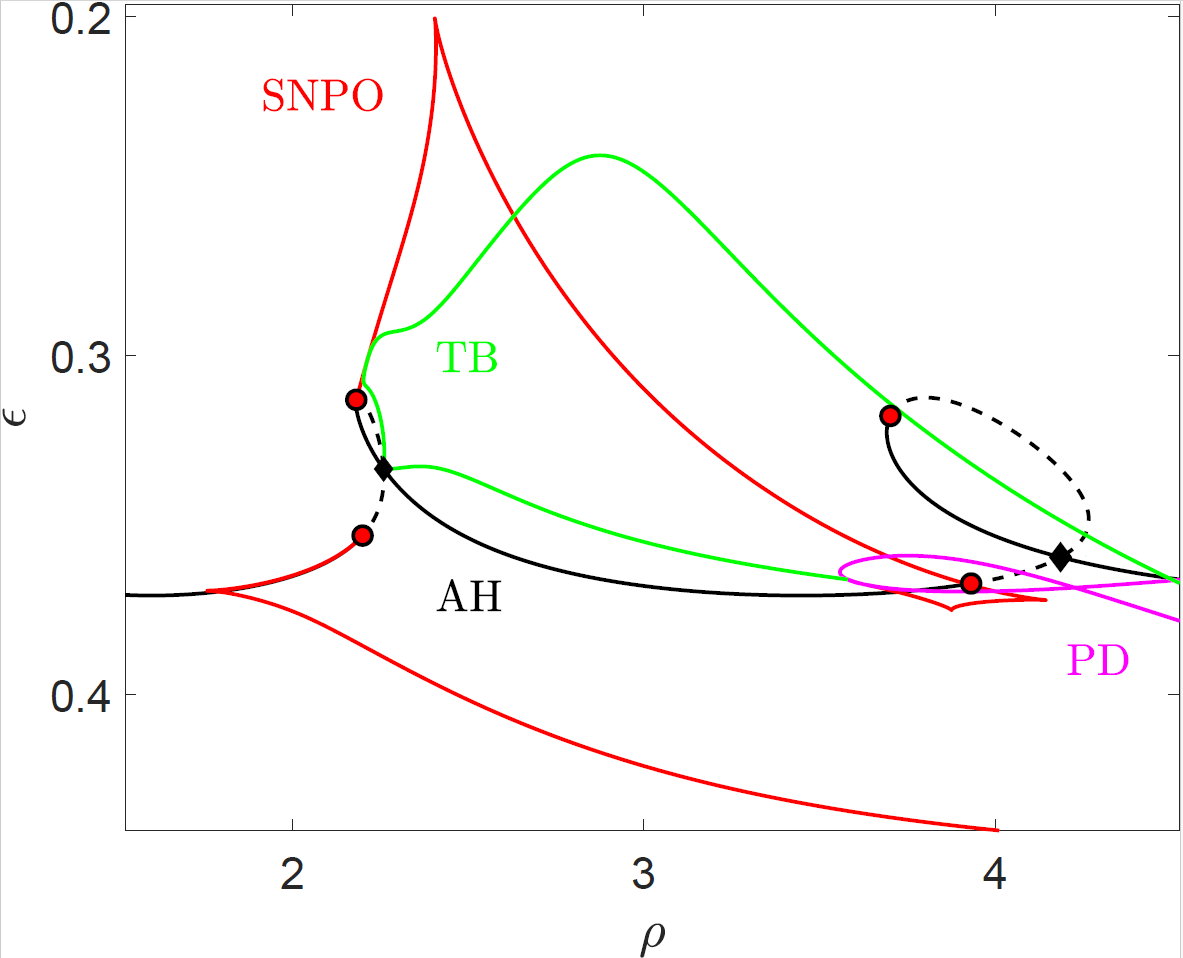

Dynamics on the Synch Manifold


  • The onset of synchronous oscillatory solutions

  • Solid/dashed lines are super/sub-critical Hopfs

  • Circles denote Bautin bifurcations and diamonds double Hopf bifurcations
  • This type of looping structure is generic for delay systems of the form: \[\displaystyle x'(t) = f(x(t),x(t-\tau))\]
  • To see this note that if $x_0(t)$ is a periodic solution with delay $\tau=\tau_0$ and period $T(\tau_0)$ then it can be shown that the same periodic solution reappears with delay \[\tau_0+lT(\tau_0), \quad l\in\mathbb{Z}^+\]
  • See for Yanchuk and Perlikowski. Phys Rev E, 2009 for further details

  • Bifurcation curves emenating from the higher-dimensional bifurcations include:

    • saddle node of periodic orbits
    • torus bifurcations
    • period doubling

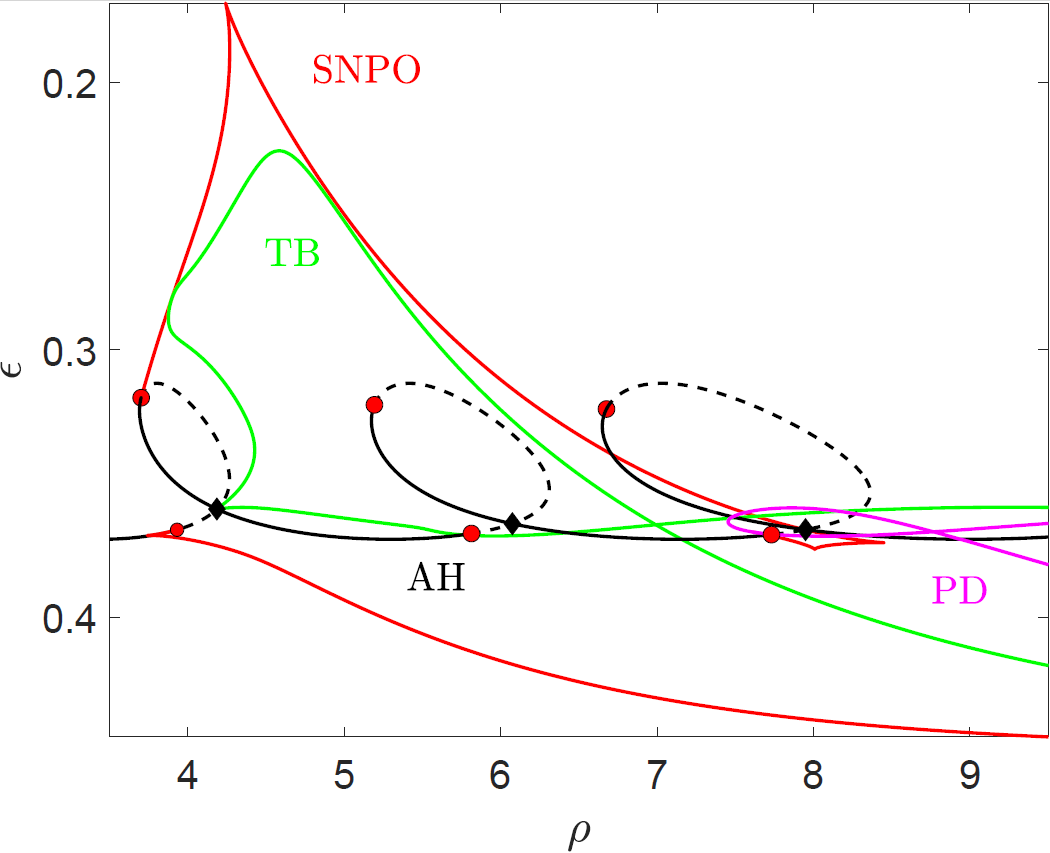

  • This pattern repeats ...

  • Increasing branch crossings ...

  • Increasingly complex dynamics

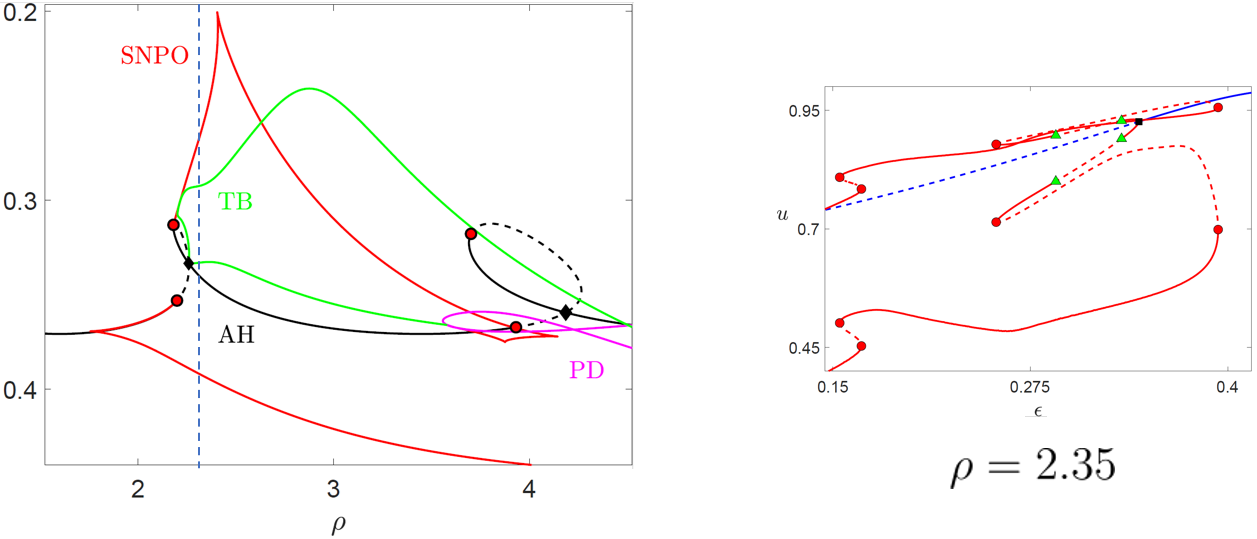

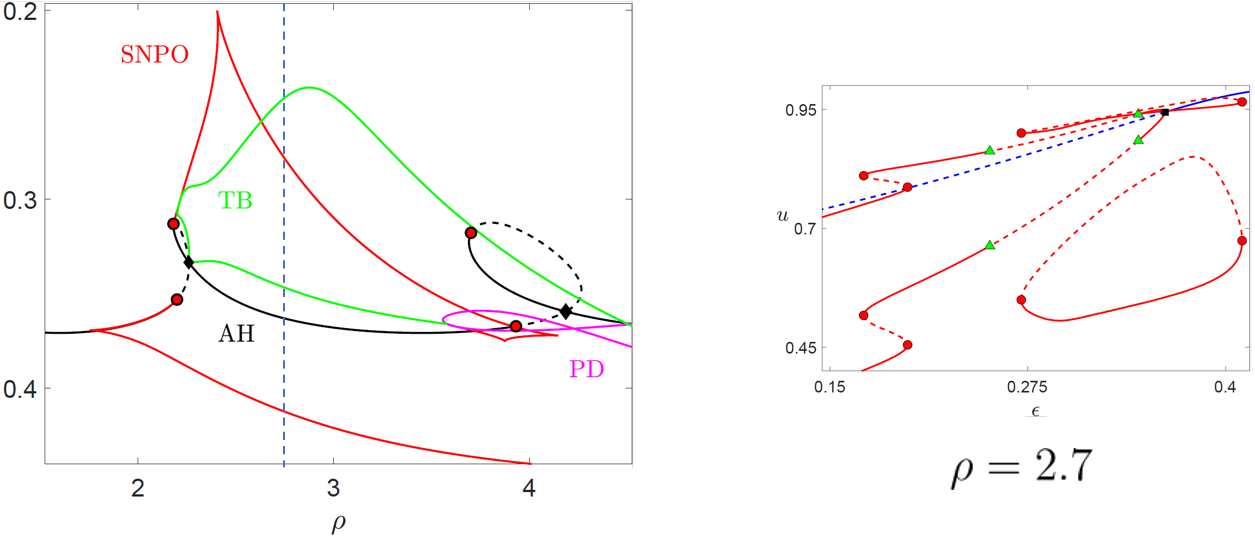

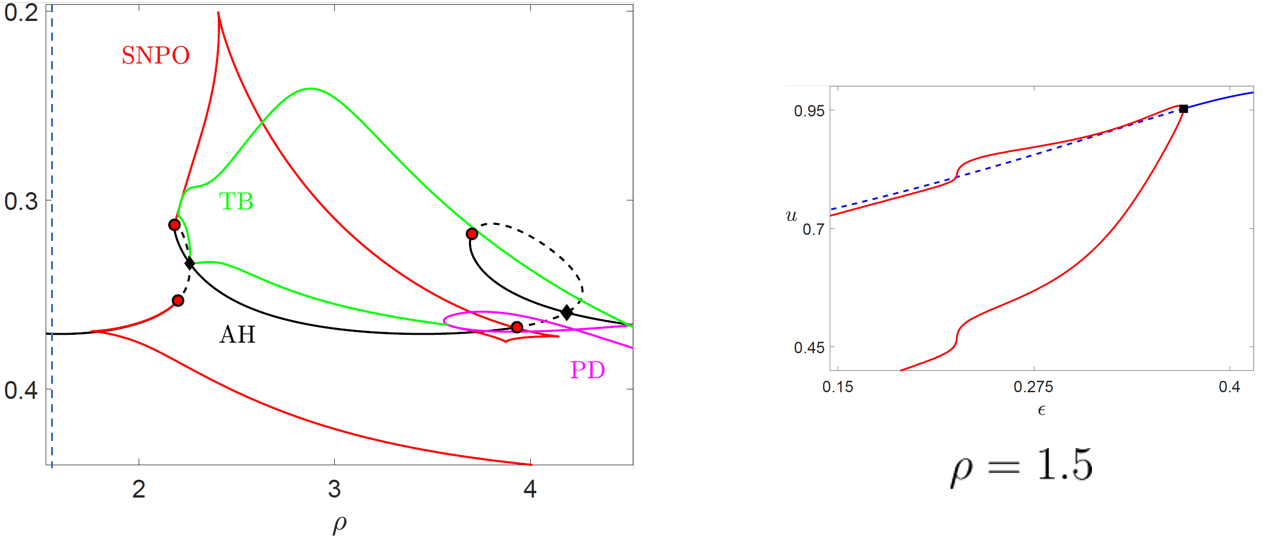

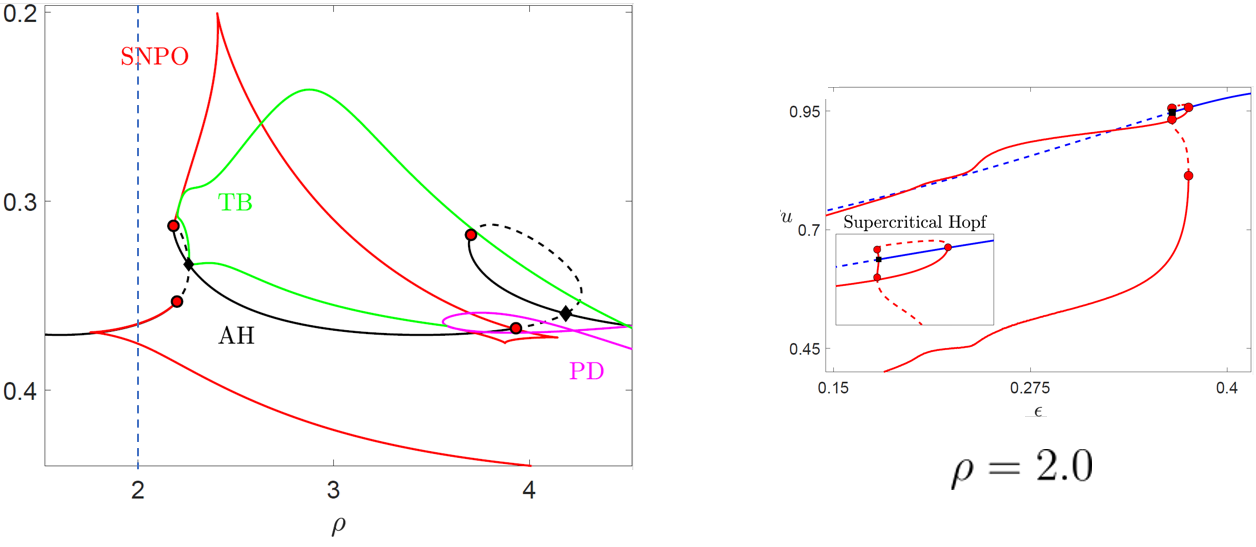

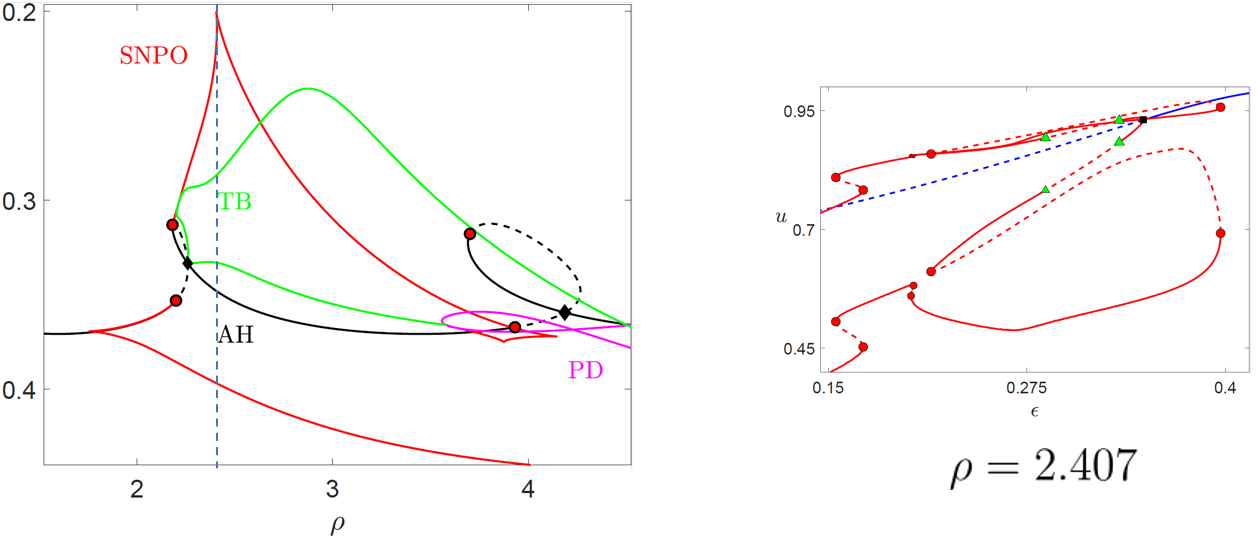

1D Slices

To better understand the bifurcation plots from the previous slides we consider a selection of 1D slices


Chaotic Synchrony

Torus and period doubling bifurcations are often signs of chaotic behavior

We computed the maximal Lyapunov exponent as a function of the parameters $(\rho, \epsilon)$

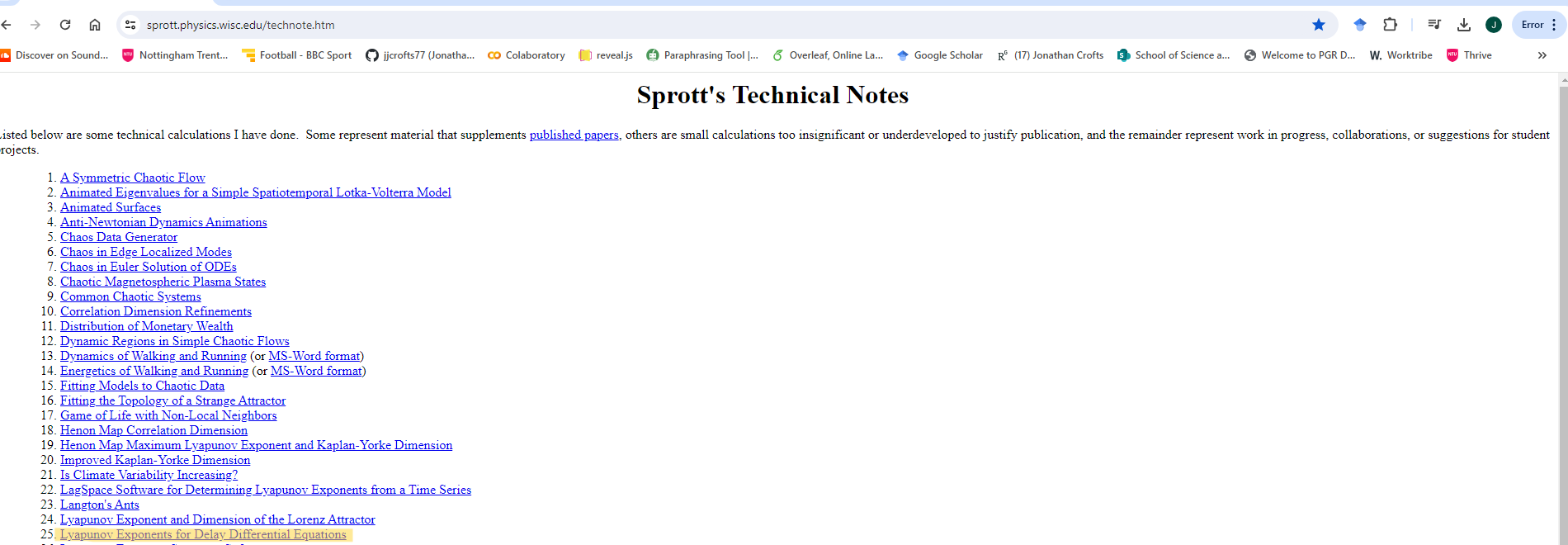

Great dynamical systems resource including codes

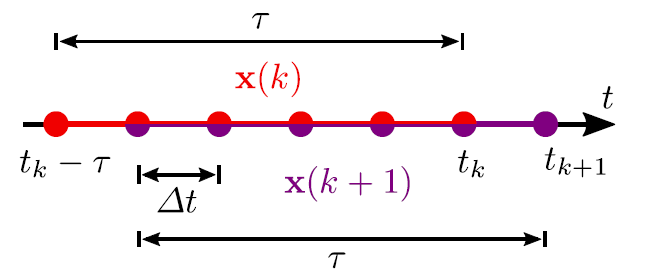

Approximate the DDE

\[ \frac{\mathrm{d}x}{\mathrm{d}t} = F(x(t),x(t-\tau)) \]

as \[ \begin{align*} x^{(0)}_{k+1} &= x^{(0)}_k + \tau F(x_k^{(0)},x_k^{(N)})/N\\ x^{(i)}_{k+1} &= x_k^{(i-1)} \quad\text{for}\quad 1\leq i\leq N \end{align*} \] Here, \[ x^{(i)}_k = x(t_k-i\Delta t) \quad\text{and}\quad \tau = N\Delta t\]

This is known as the Euler map method

Else represent the DDE \[ \frac{\mathrm{d}x}{\mathrm{d}t} = F(x(t),x(t-\tau)) \]

as a system of $N+1$ ODEs \[ \begin{align*} \frac{\mathrm{d}x_0}{\mathrm{d}t} &= F(x_0,x_N)\\ \frac{\mathrm{d}x_i}{\mathrm{d}t} &= \frac{N\left(x_{i-1}-x_{i+1}\right)}{2T}\quad\text{for}\quad 1\leq i\leq N-1\\ \frac{\mathrm{d}x_N}{\mathrm{d}t}&= \frac{N\left(x_{N-1}-X_N\right)}{T} \end{align*} \]

Solve using standard methods such as RK4

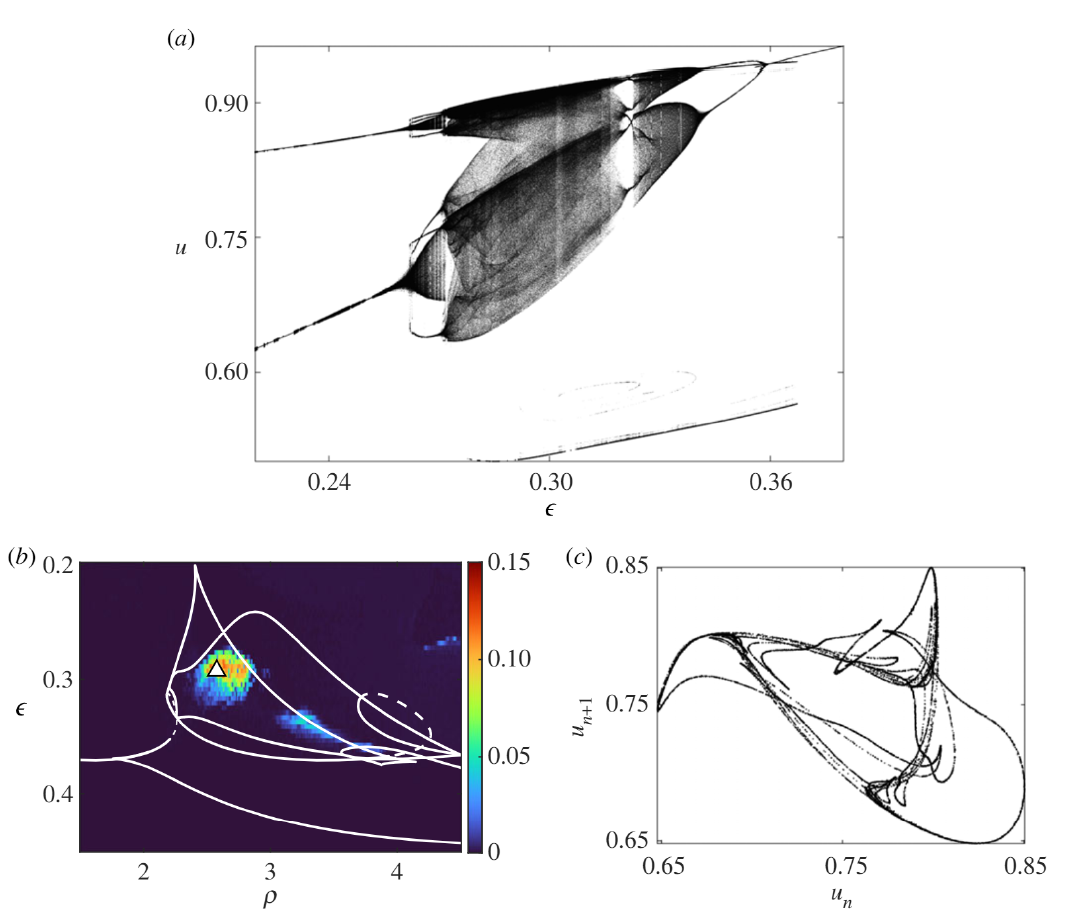

We deployed the Euler map method to obtain:

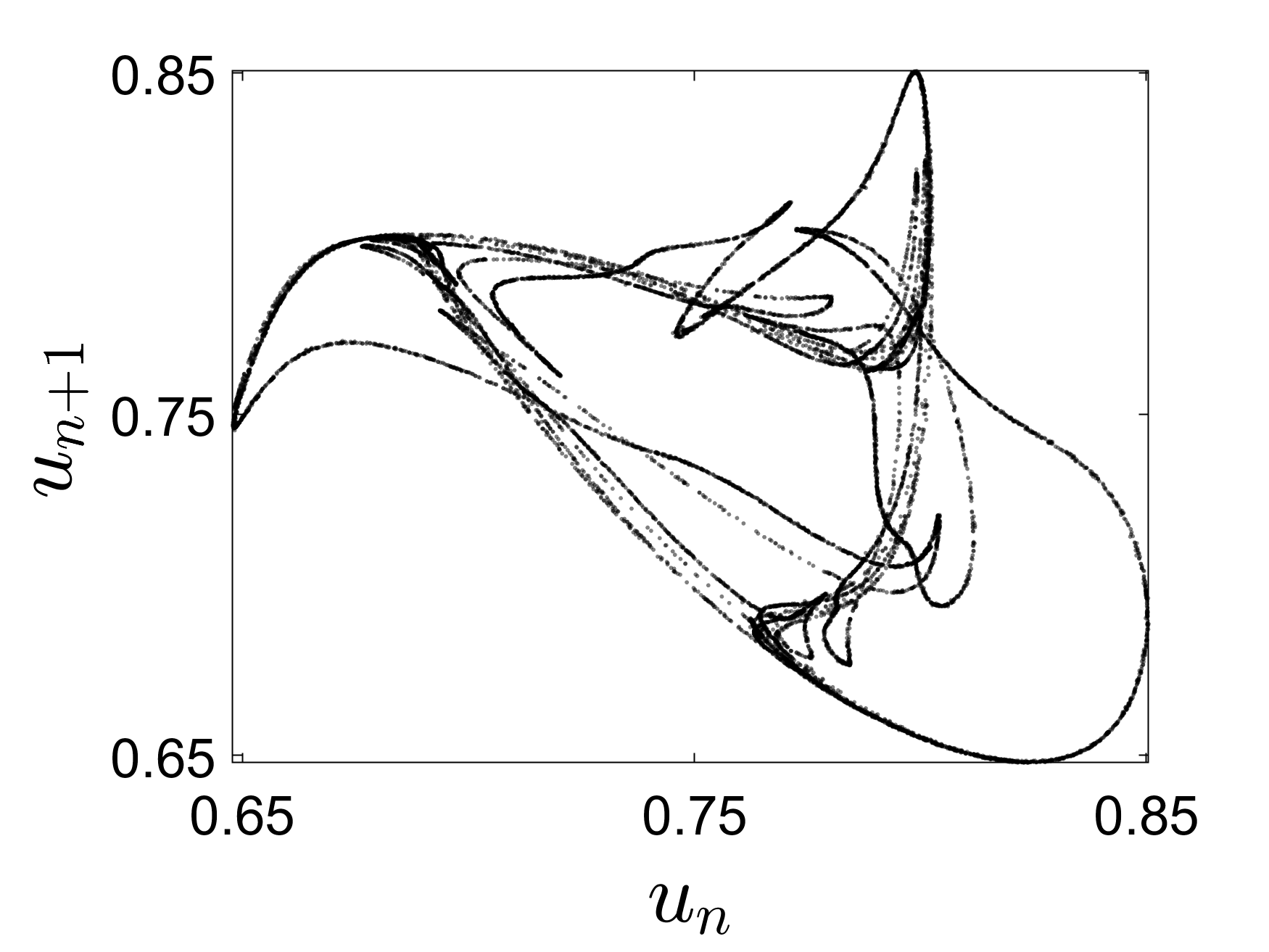

  • Poincare return map for \[(\rho, \epsilon) = (2.7,0.27)\]
  • Evidence of a strange attractor

  • How does chaos arise?

Interestingly the highlighted region sits between the torus bifurcation branches

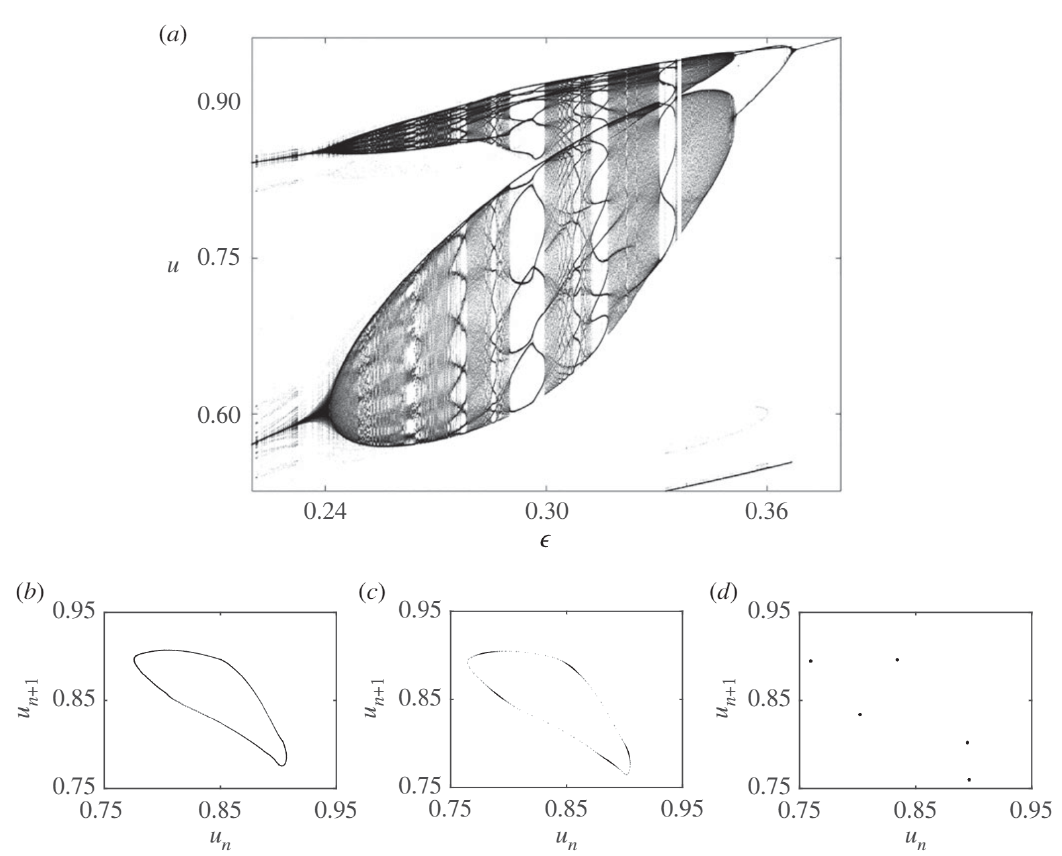

$\epsilon$ parameter sweep of the maximum and minimum values of $u$

  • Quasiperiodic regime dynamics for $\rho = 2.9$
  • Return maps show the transition from a smooth ergodic torus to a resonant zone

$\epsilon$ parameter sweep of the maximum and minimum values of $u$

  • Further evidence of chaotic dynamics observed for $\rho = 2.7$
  • Numerical evidence suggest chaos arise from the breakdown of a torus

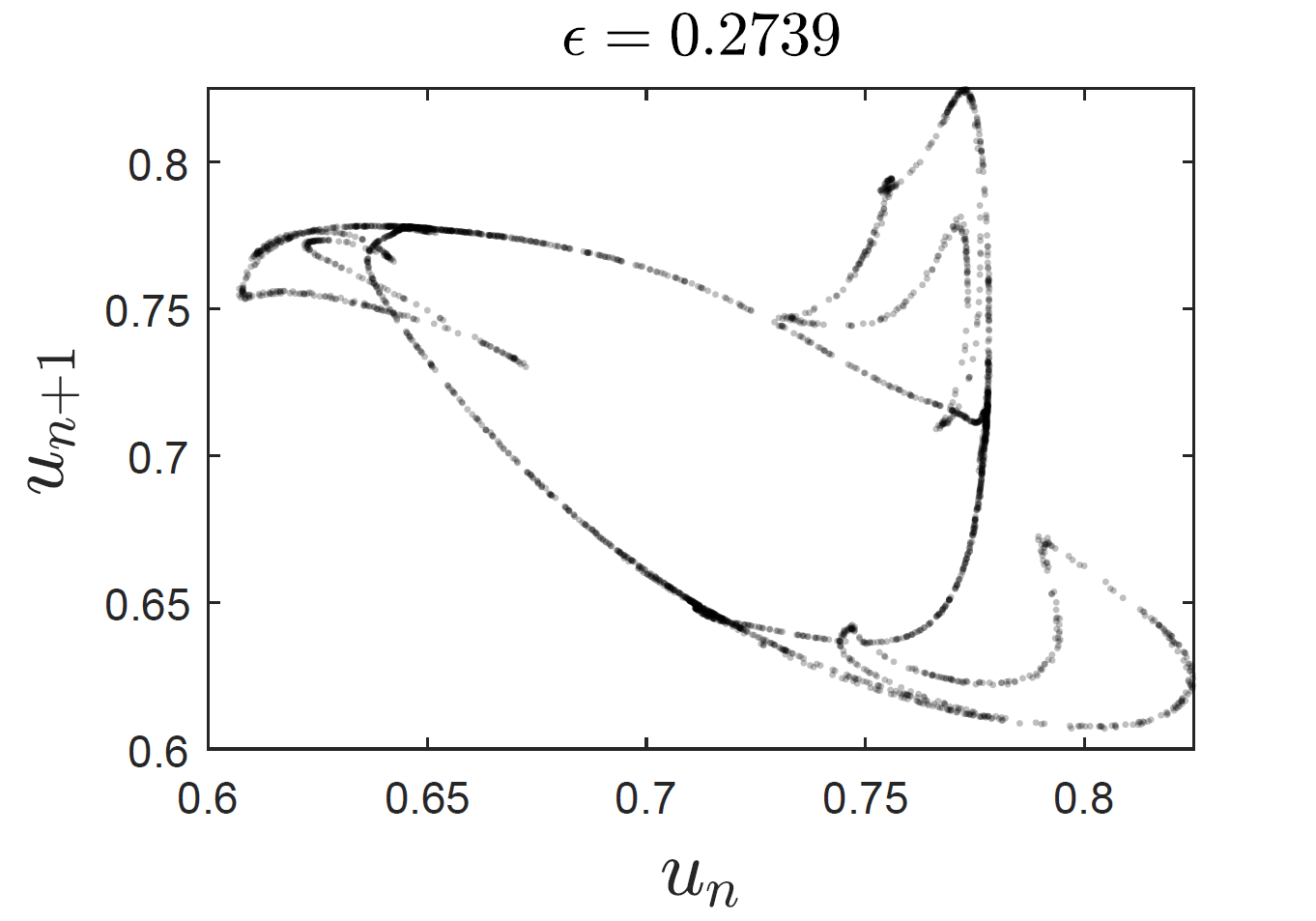

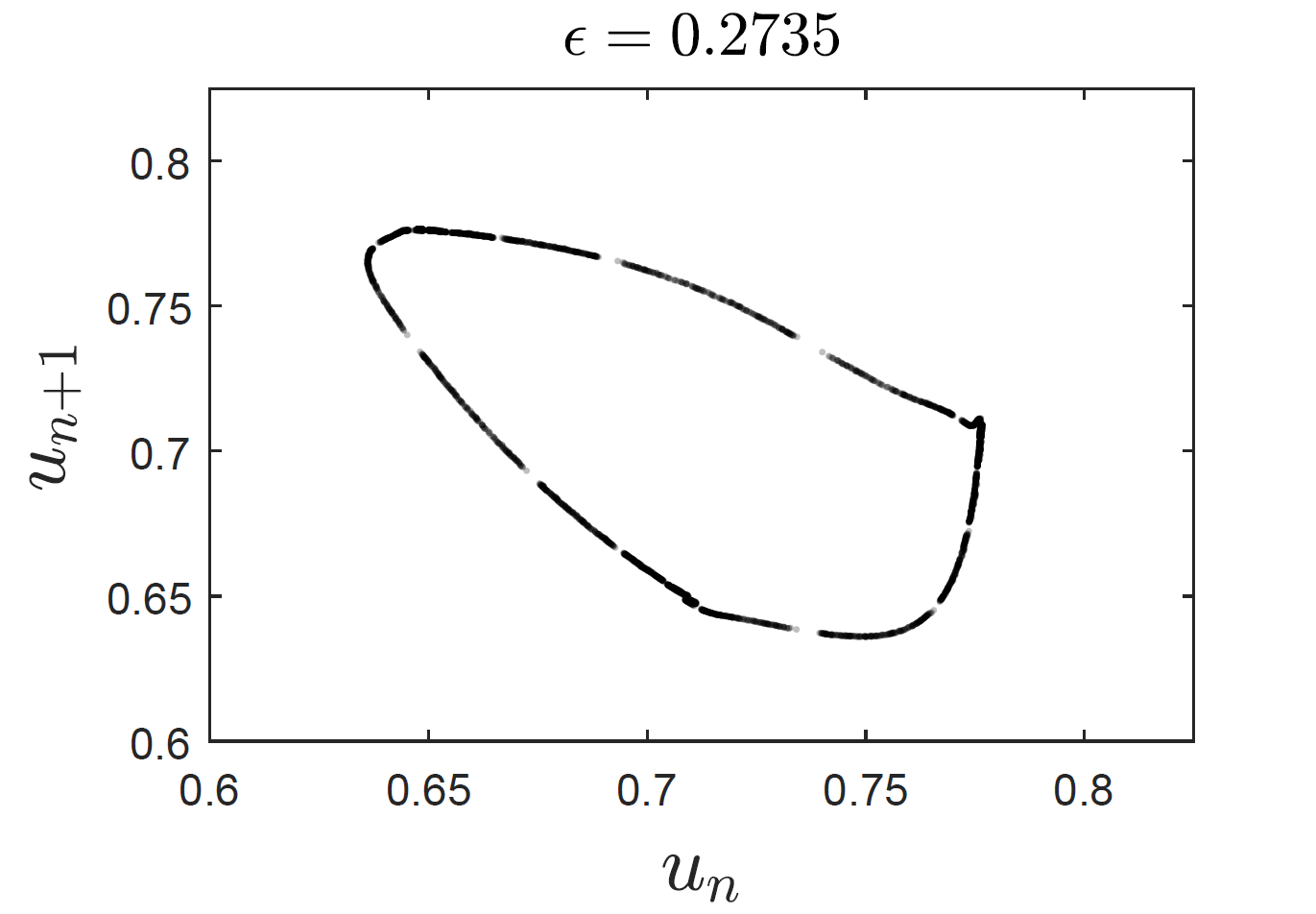

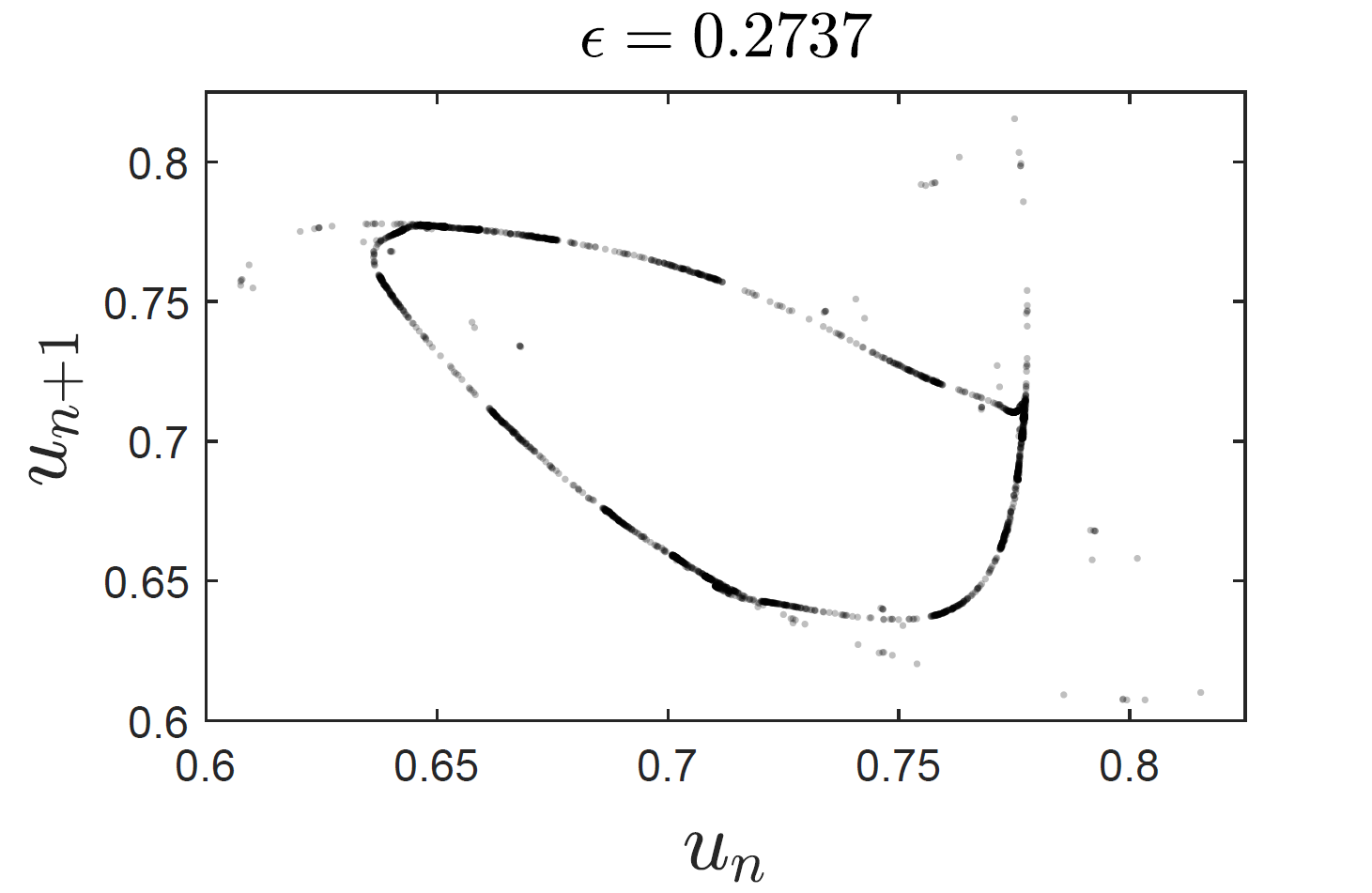

Torus breakdown

  • Moving from left to right we observe the torus breakdown


  • Note that the breakdown originates at points on the torus that become nonsmooth (under variation of the parameter $\epsilon$)

  • This results in the previously identified strange attractor

Summary of the dynamics on the synch manifold


  • Synchronous solutions do not coincide with the uncoupled dynamics, as is the case for the often studied diffusive coupling (master stability analysis etc.)

  • Thus, both coupling strength and inter-nodal delay impact on sycnhronised solutions

  • Branch crossings and higher-dimensional bifurcations lead to the emergence of multistable and/or irregular dynamics in large regions of parameter space

  • Evidence for a torus breakdown route to chaos

Outline


  • Introduction and Motivation

  • A Brain Network Model

  • Bifurcation Structure of the Synchronisation Manifold

  • The Effect of Network Structure and Time Delay on Patterns of Synchrony

  • Concluding Remarks and Future Work

Bifurcation Structure for a Ring of Neural Masses

To better understand the impact of network structure on the synchronous solutions studied thus far we considered a simple ring network architecture

With adjacency matrix given by

\[ A = \begin{pmatrix} 0&1&0&\cdots&1\\ 1&0&1&\ddots&\vdots\\ \vdots&\vdots&\ddots&\ddots&0\\ 0&0&\cdots&0&1\\ 1&0&\cdots&1&0 \end{pmatrix} \]

In our experiments $n=6$ for computational ease

Stability of the homogeneous steady state

In the case of a ring network stability is governed by the following equation

\[ \mathrm{det} \left[ I_n\otimes\left( \lambda I_2 - A - Be^{-\lambda\tau}\right) - \left(K+K^{n-1}\right)\otimes \left(C_\epsilon e^{-\lambda\rho}\right)\right] = 0, \]

where $A, B$ are the same as for the self-coupled node,

\[ C_\epsilon = \begin{pmatrix}\frac{1}{2}\epsilon\beta u^*(1-u^*)&0\\0&0\end{pmatrix}, \]

and

\[ K = \begin{pmatrix} 0&1&0&\cdots&0\\ 0&0&\ddots&\ddots&\vdots\\ \vdots&\vdots&\ddots&\ddots&0\\ 0&0&\cdots&0&1\\ 1&0&\cdots&0&0 \end{pmatrix} \]

is the basic circulant permutation matrix

  • Due to the bock circulant structure of the above matrix, we can employ a discrete Fourier transform to diagonalise it, leading to the following factorised from of the characteristic equation:

    \[ \prod_{k=1}^n \mathrm{det}\left[\lambda I_2 - A - Be^{-\lambda \tau} - \left(e^{i\phi_k} + e^{i(n-1)\phi_k}\right)C_\epsilon e^{-\lambda \rho}\right] = 0, \]

    where $\displaystyle \phi_k = 2\pi k/n, k=1,\ldots, n$.

  • This equation can be solved numerically to determine the stability properties of the steady state solution of the full system as a function of the parameters $\rho$ and $\epsilon$

  • Next we explore the bifurcation structure of a ring network on $n=6$ nodes

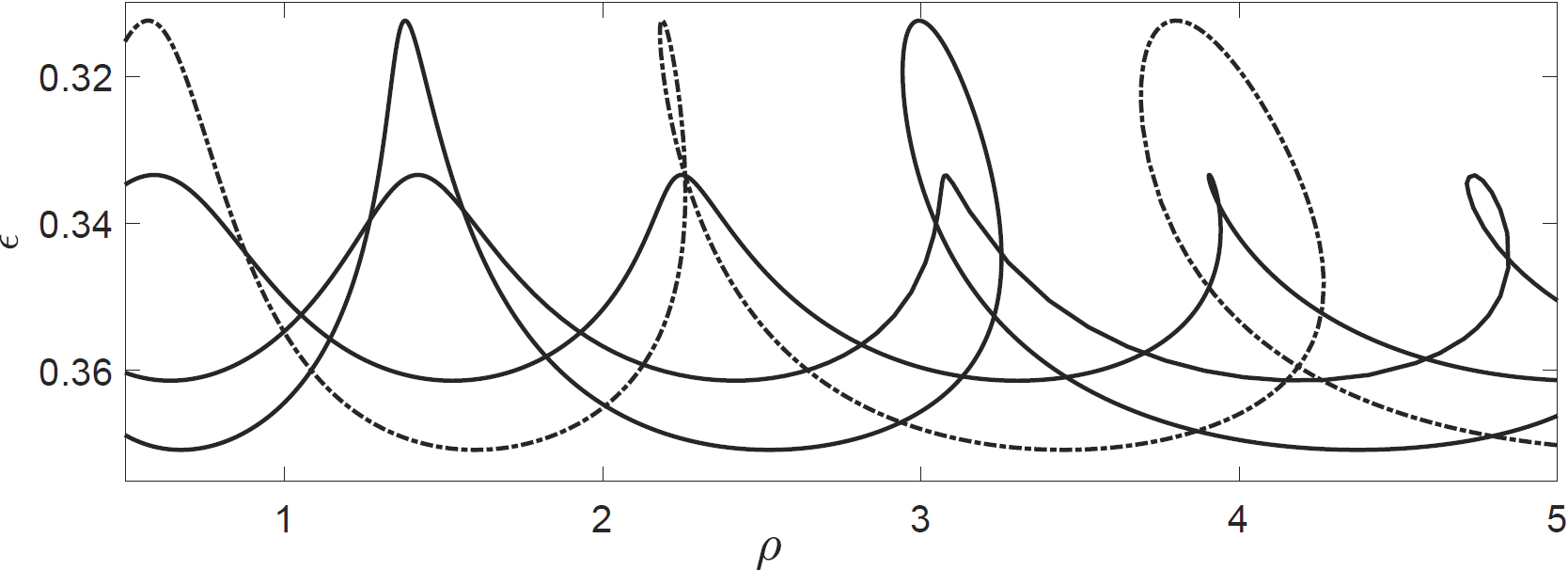

Dynamics on a Six Node Ring


  • The onset of oscillatory solutions

  • Three additional asynchronous AH branches for a 6 node ring

  • Solid/dashed lines are asynchronous/synchronous AH branches

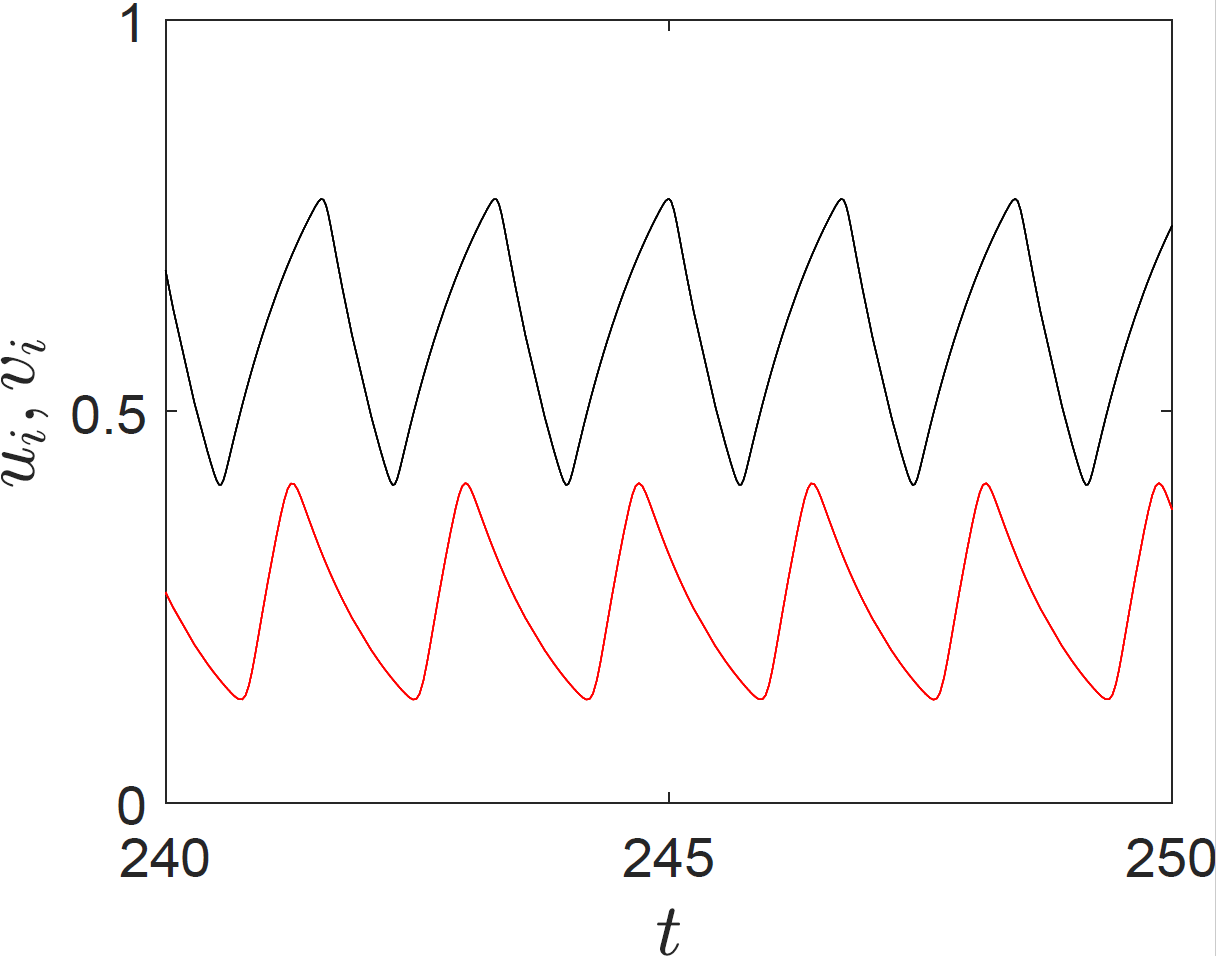

  • Crossing the dashed/solid line results in asynchronous/synchronous solutions

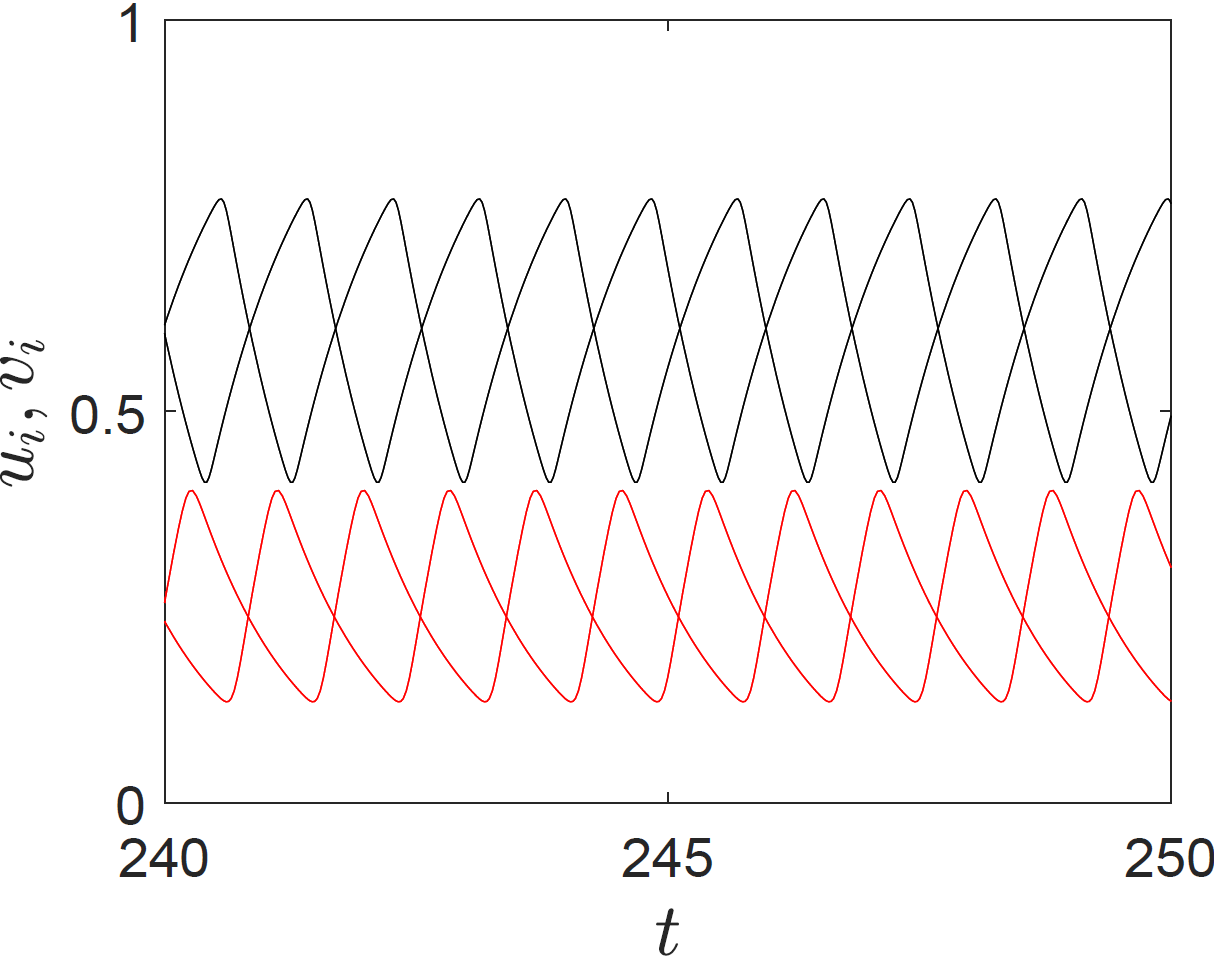

  • Black/Red lines denote excitable/inhibitory variables

  • Close to the first AH crossing these are the only two observed behaviours

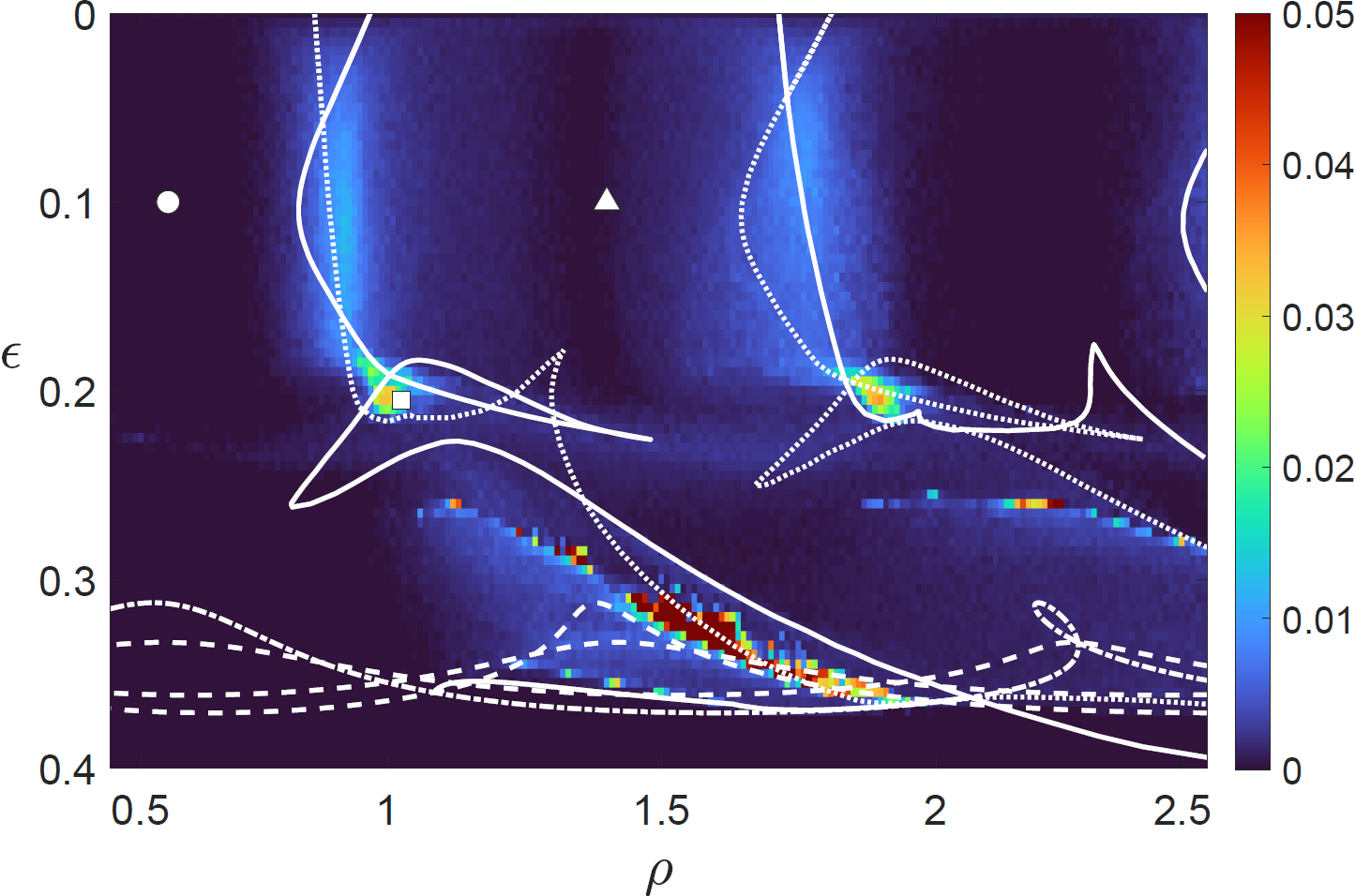

  • Plot of maximal LE as a function of $(\rho, \epsilon)$

  • Hopf branches superimposed

  • Solid and dotted white lines denote torus branches

  • Weak chaotic boundaries

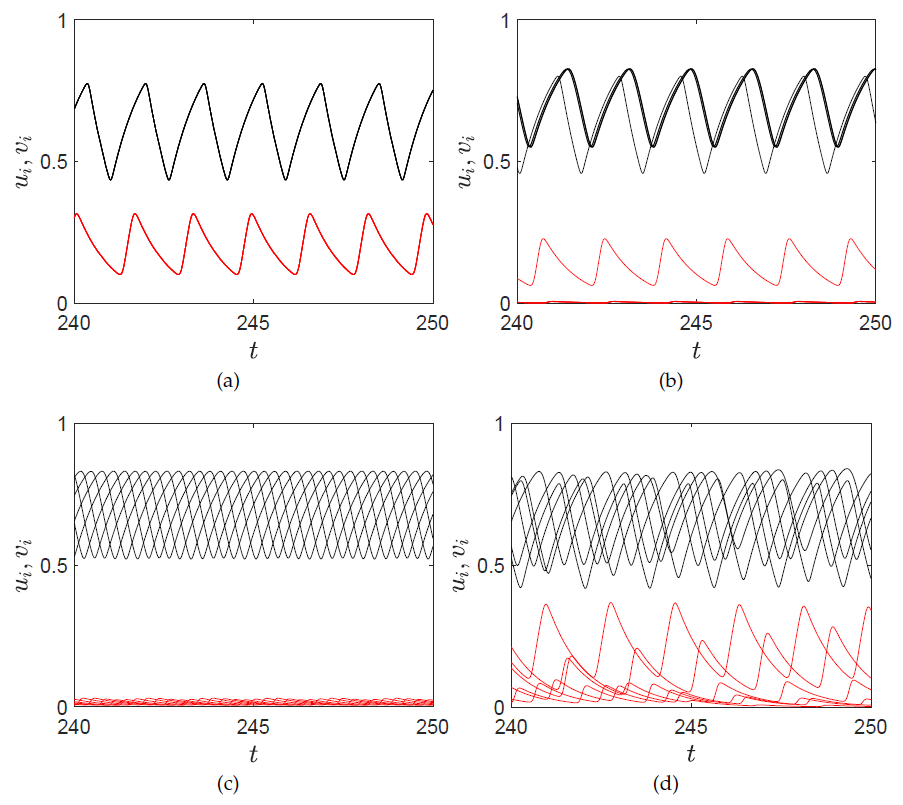

Four different ICs for $(\rho, \epsilon) = (1.025, 0.205)$

Larger Network Structures

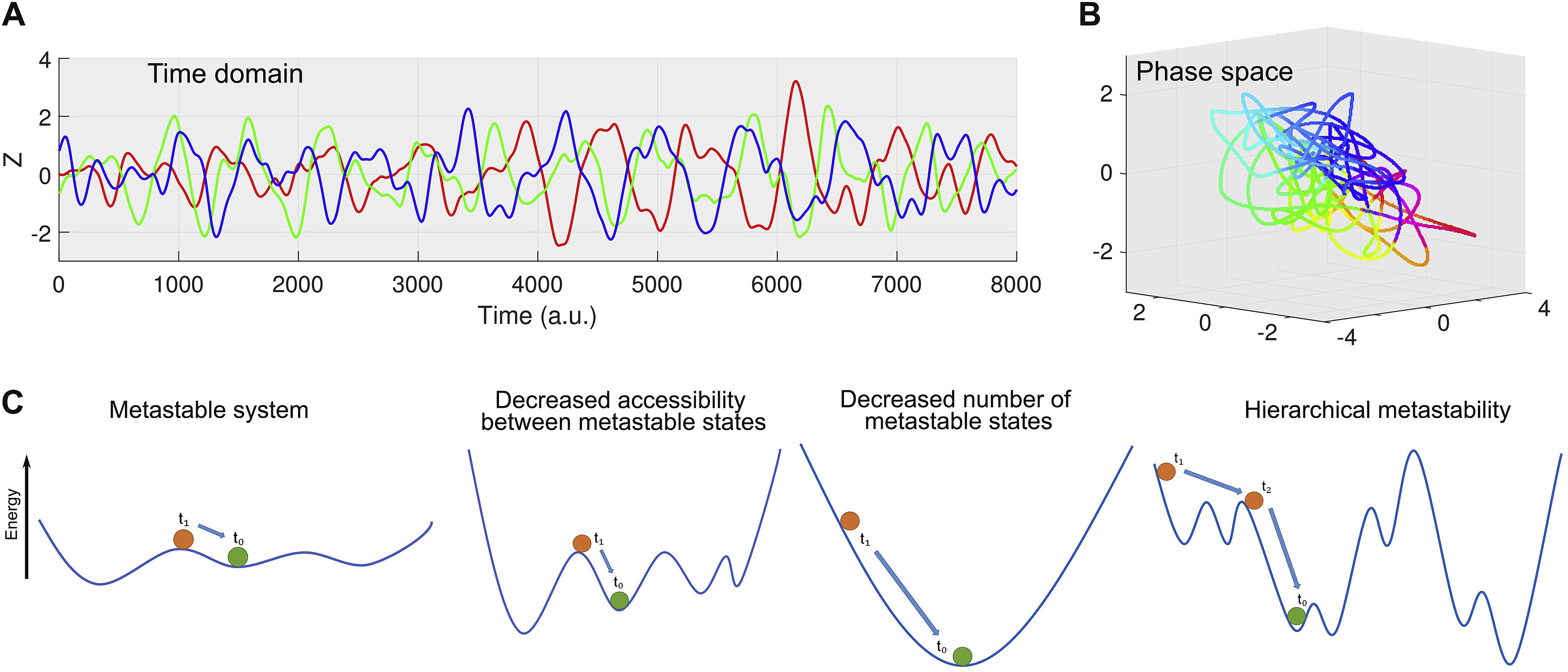

Metastability

"Metastability is a fundamental concept to grasp the behavior of complex systems theoretically and empirically"

E Tognoli and JA Scott Kelso. The Metastable Brain, Neuron, 2014

F Cavana et al. NeuroImage, 2018

Metastability is an important concept in neuroscience and is related to the concept of state (or attractor) switching, which naturally arises in noisy, multistable systems

Closely connected to idea of dynamic functional connectivity

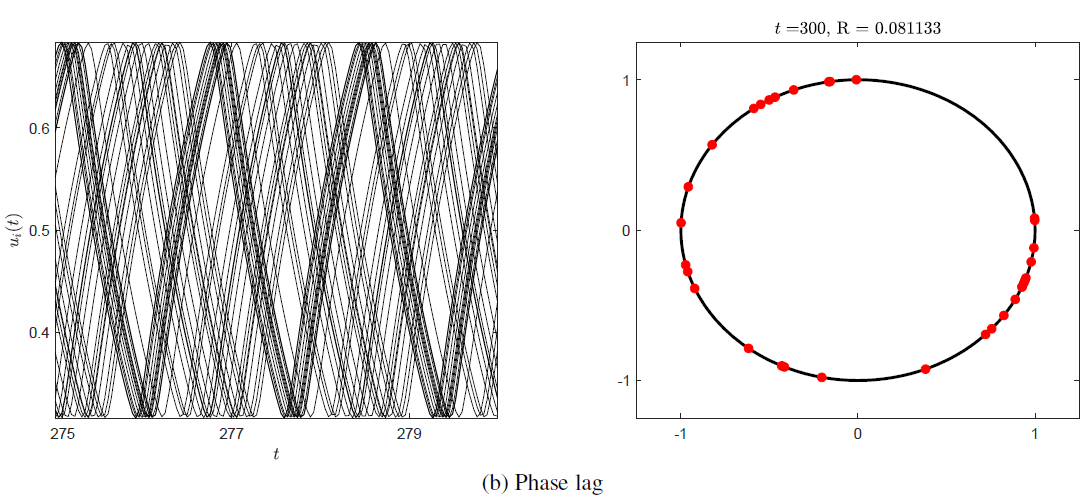

The Kuramoto Order Parameter

  • Global synchrony levels are quantified using the time-averaged Kuramoto order parameter
    • \[ R(t) = \frac{1}{n}\sum_{i=1}^n e^{i\theta_i(t)} \]
  • And metastability is defined as the variance in $R$

  • The instantaneous phase $\theta_i(t)$ is computed by applying the Hilbert transform and reading out the angle of the complex part












Dirk Brockman and Steven Strogatz, "Ride my Kuramotocycle"

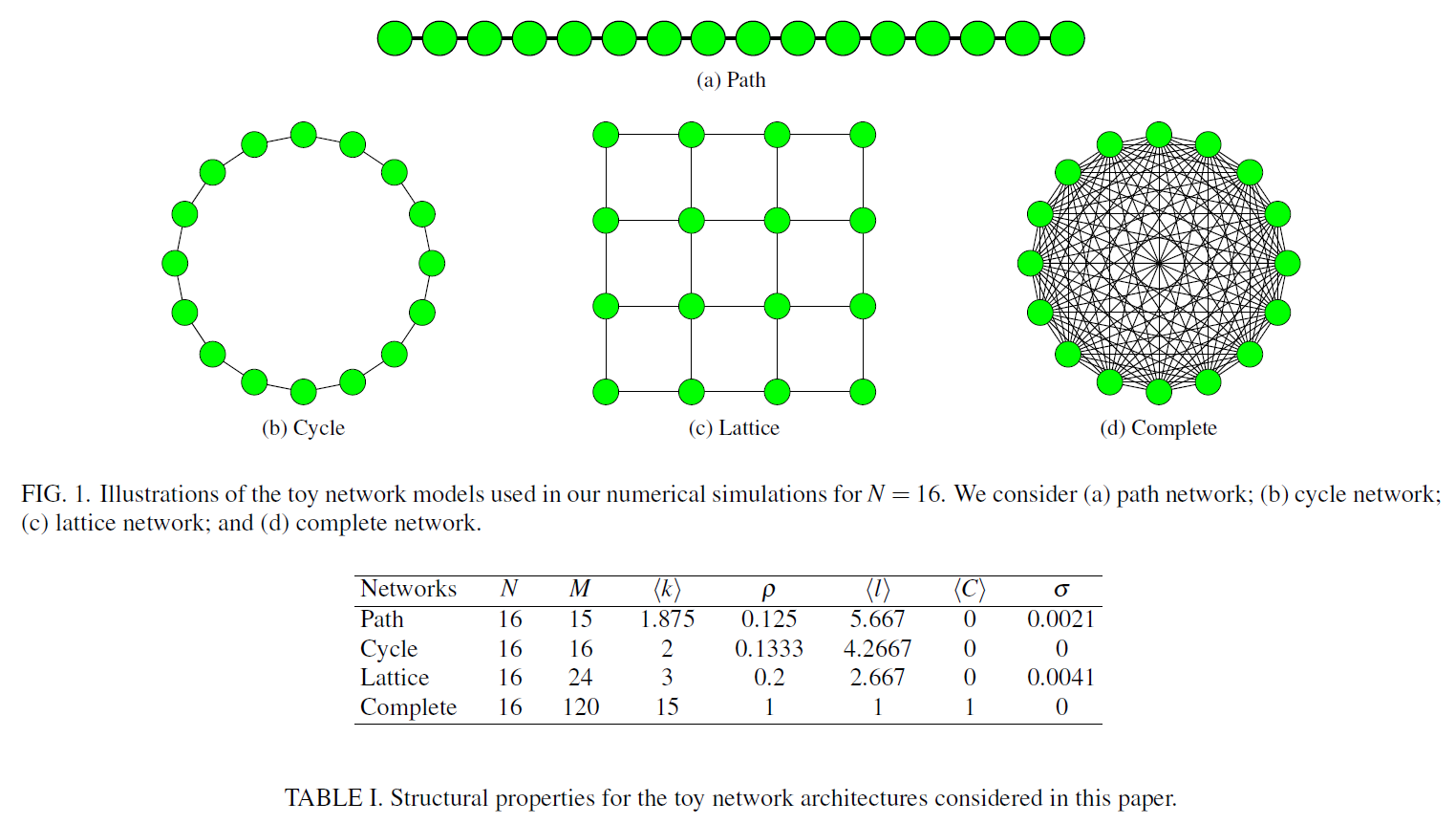

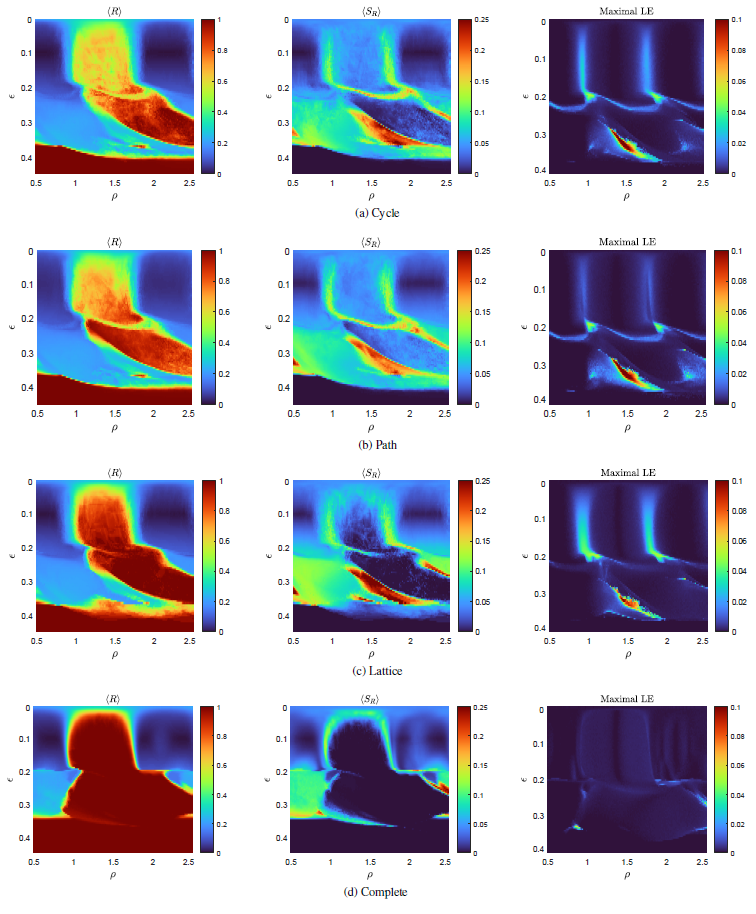

Toy network Structures

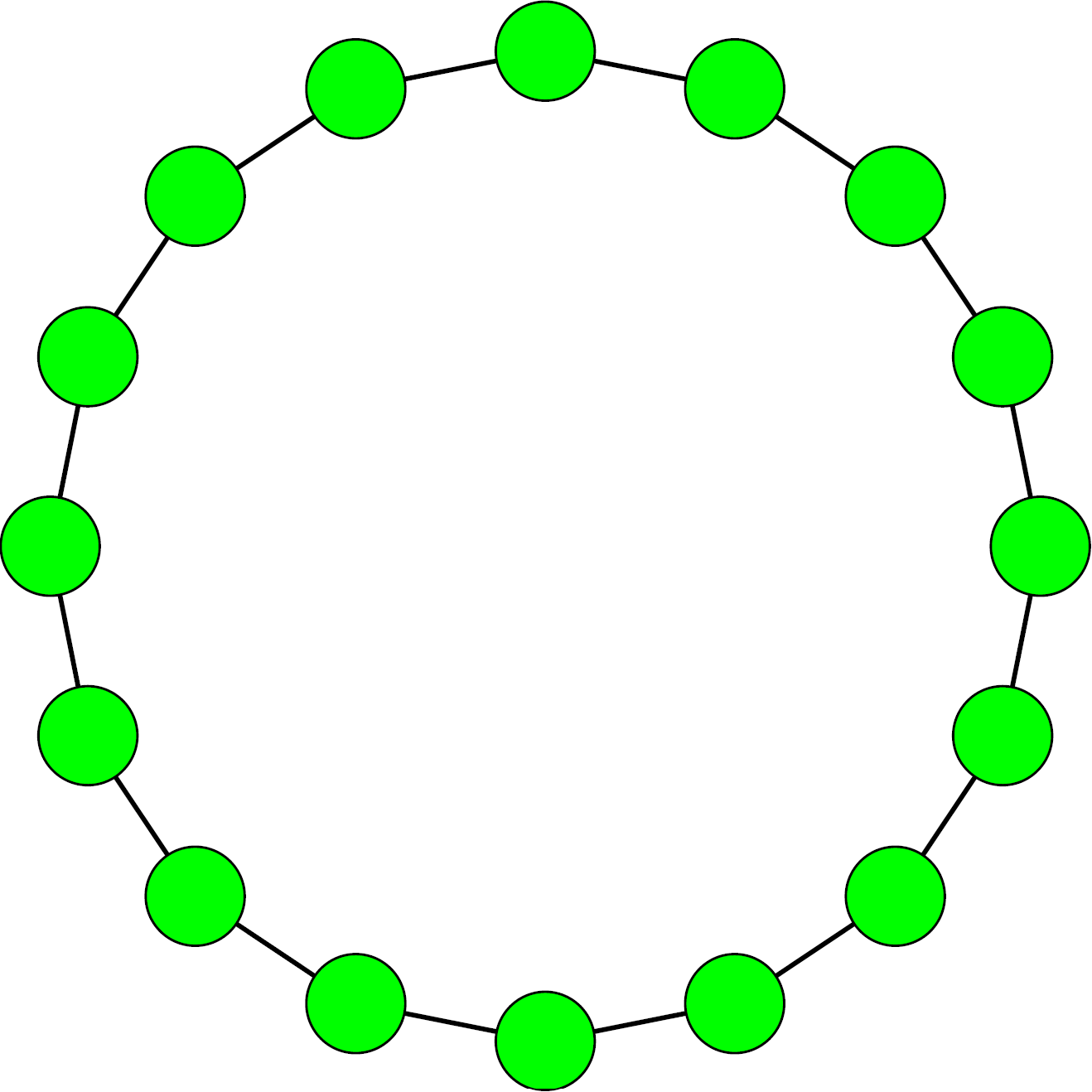

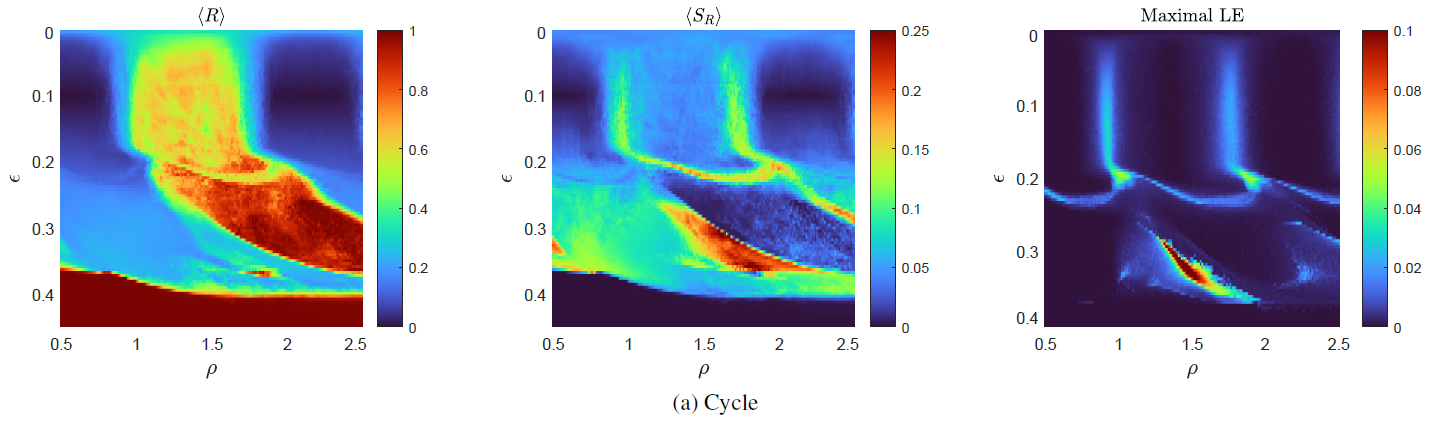

Toy network Structures: Cycle Network

  • Weak chaotic boundaries separate different dynamic behaviours

  • "Strong" chaotic island

  • Figure to left is for $n=6$ and is for illustrative purposes
  • For large coupling all networks are monostable

  • For decreasing values of $\epsilon$ we observe one of two behaviours (initially):

    • fixed points lose stability via a HB

    • the system becomes bistable after crossing an SNPO branch

  • Further reduction in $\epsilon$ results in increasingly complex behaviour - including chaos

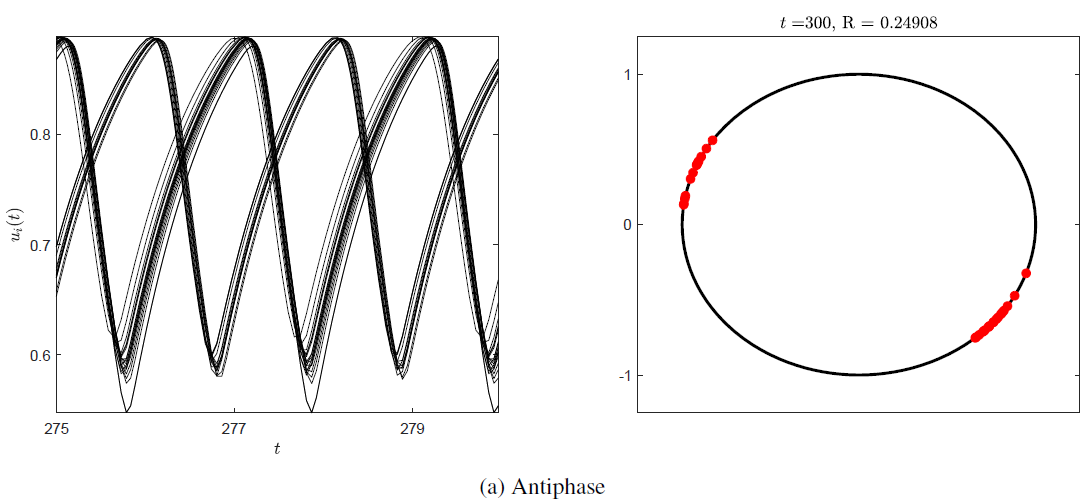

  • For small $\epsilon$ we generally see either synchronous or antiphase synchronous solutions

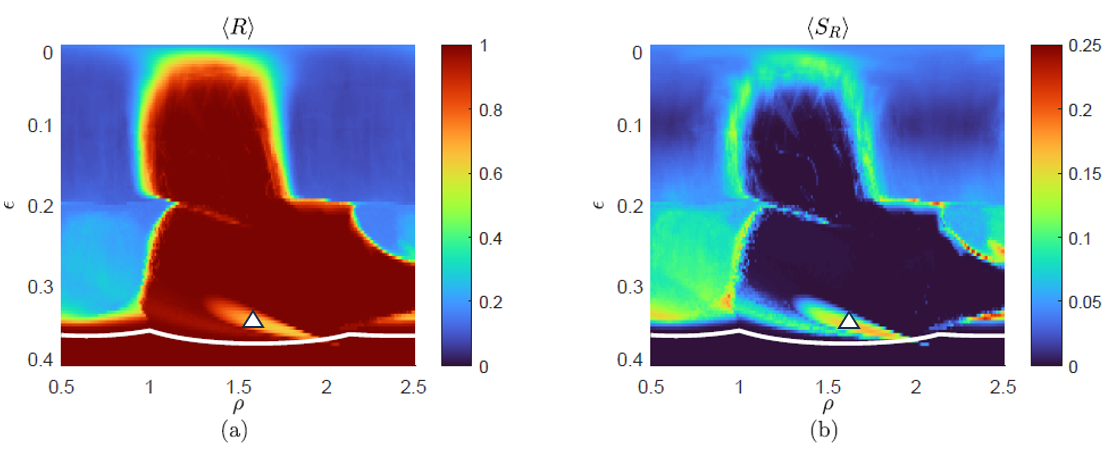

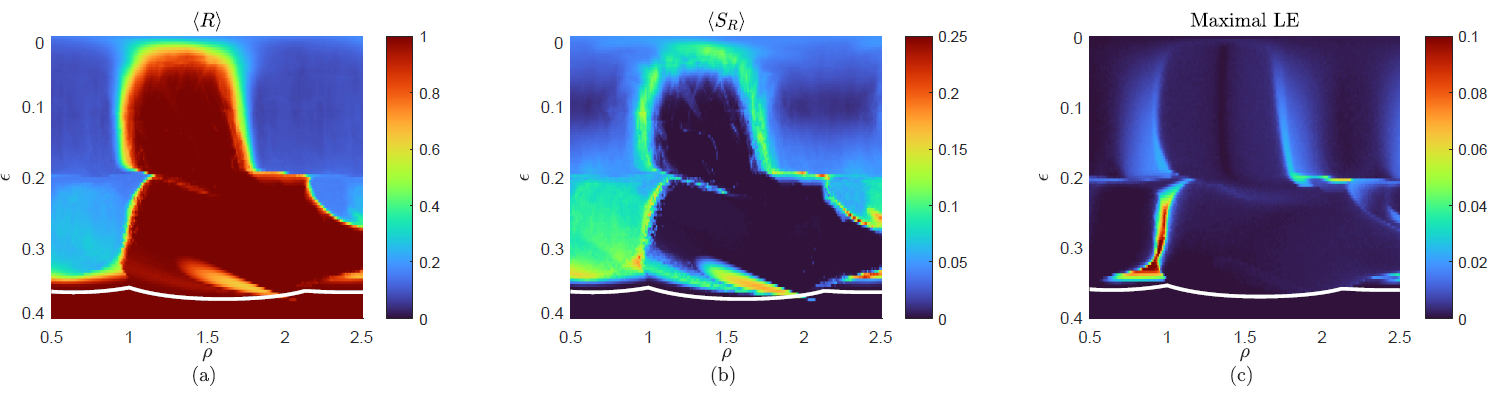

Brain Network Model

  • Large areas of high synchrony and low variability

  • Relatively high levels of synchrony and variation at criticality boundaries

  • Regions of irregular chaotic dynamics

How does this compare against the toy network structures?


  • The Macaque results most like the complete network with two main exceptions:

    • chaotic dynamics are realised

    • an island of heightened synchrony and variability is observed

  • Network heterogeneity appears to induce some novel behaviours ...

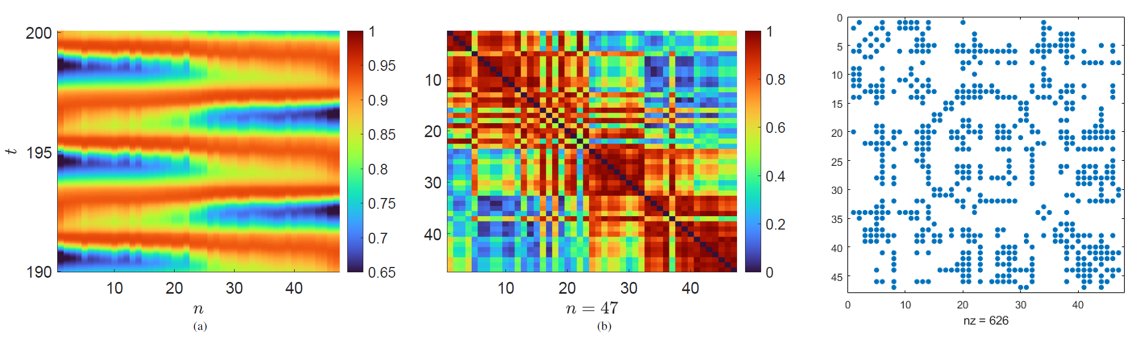

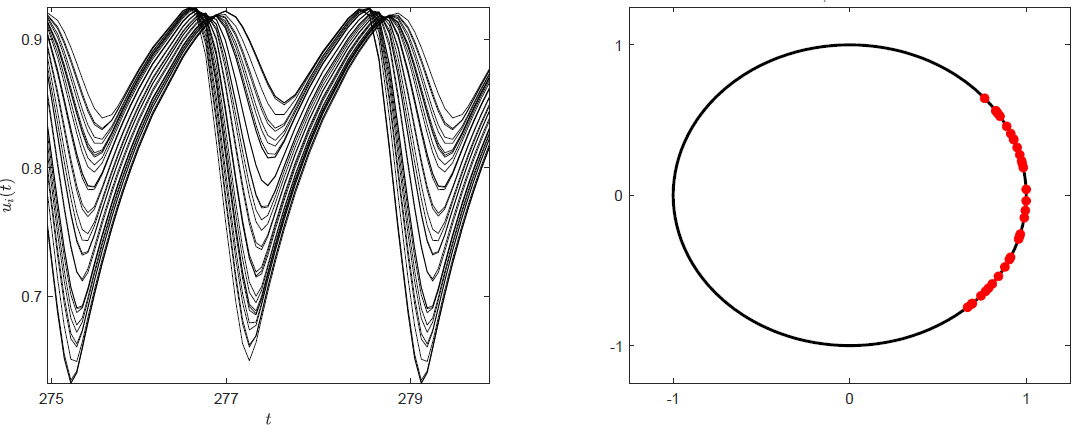

temporal profile                                         snapshot of phase

FC given by the mean phase coherence of the oscillators

Chaotic Nodes

To conclude we briefly address the question as to whether or not network dynamics can be regularised through a combination of coupling and delay

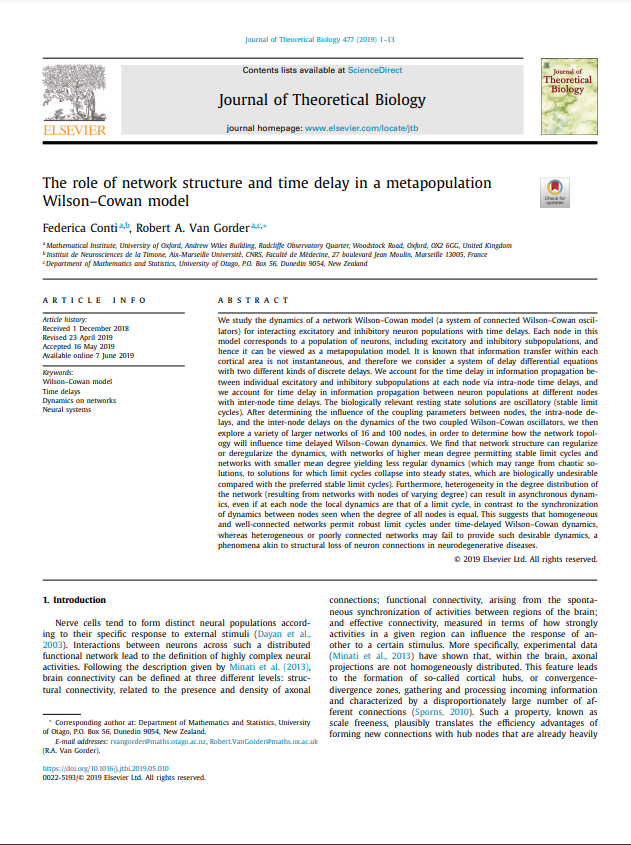

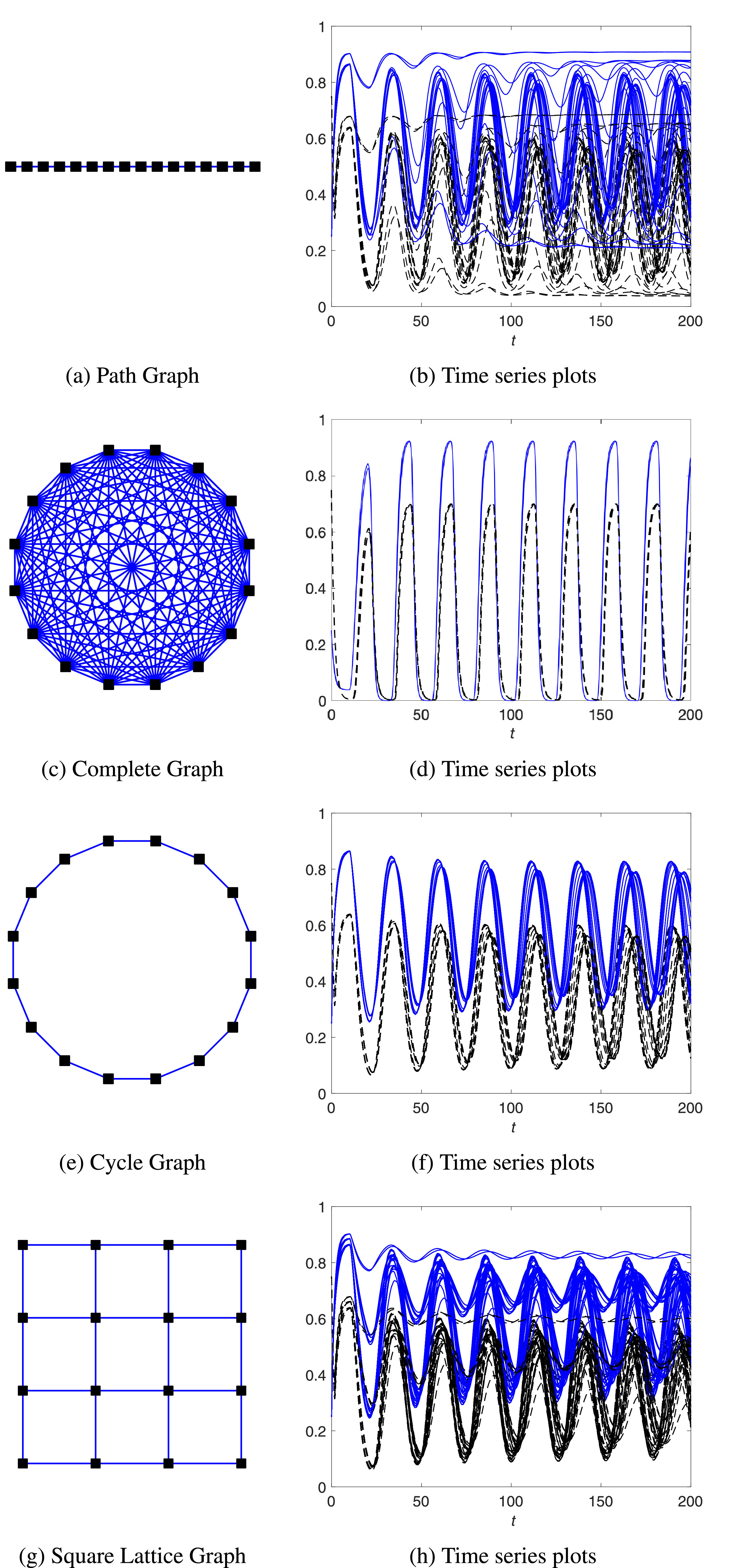

  • F. Conti and R.A. Van Gorder, JTB 2019 recently reported that certain network structures have a regularising effect

  • Does this result hold for cortical networks?

  • We chose parameter values from the chaotic regime:

    • \[ a = d = -6, b = c = 2.5, P = Q = 0.2, \beta = 60 \]


  • Delays and coupling: $\tau=0.1, \rho=0.9$ and $\epsilon=0.34$
    •

  • The 'correct' balance between coupling and inter-nodal delay can induce order

  • In the presence of network heterogeneity, coupling strength and inter-nodal may have a role to play in preventing the appearance and spread of irregular, asynchronous dynamics

Outline


  • Introduction and Motivation

  • A Brain Network Model

  • Bifurcation Structure of the Synchronisation Manifold

  • The Effect of Network Structure and Time Delay on Patterns of Synchrony

  • Concluding Remarks and Future Work

Conclusions and Future Work

    To conclude, we have
    • deployed a simple brain network model to explore time delay effects and network configuration on nerual dynamics

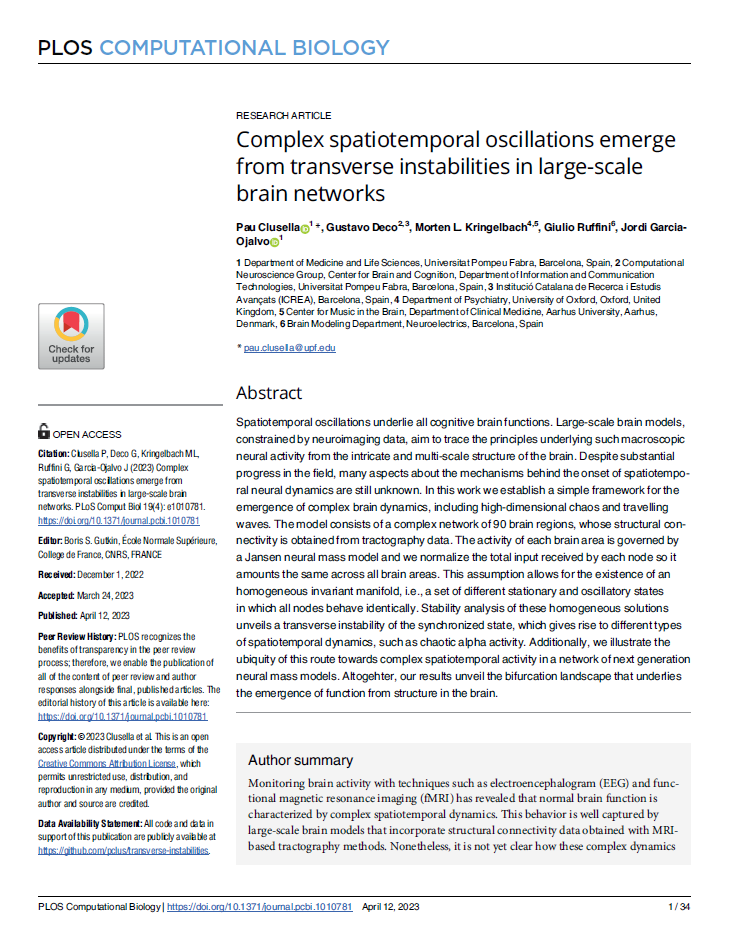

    • shown that network structure gives rise to complicated spatiotemoporal dynamics through transverse instabilities of the synchronised state
    • highlighted the important role that higher dimensional bifurcations likely play in the emergence of complicated, multistable dynamics (T Gross, Front. Neural Circuit, 2021 - critical hypersurface)

    In the future we aim to
    • apply our techniques to human brain networks that incorporate a large number of delays
    • compare variations in metastabilty across different species
    • consider the effect of network directionality on the results presented here
    • extend the current work to include distributed delays

Aknowledgements

Collaborators
& Thank You!




PHD student : Iain Pinder

References
